The Strategic Role and Evolution of Industrial Pipe Tees

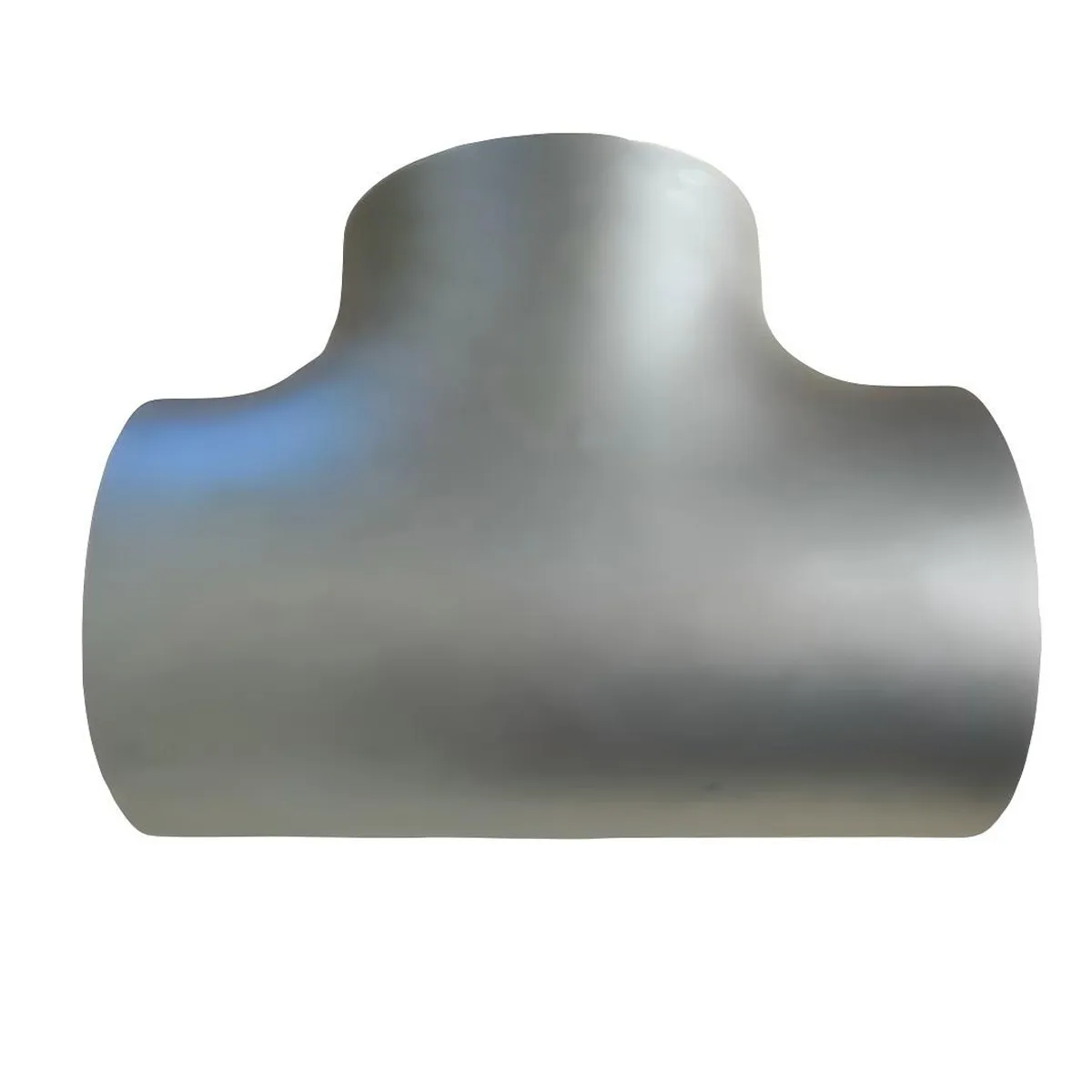

In complex industrial fluid transfer systems, the humble yet critical component known as the pipe tees plays a pivotal role. These fittings, characterized by their T-shaped design, are indispensable for branching a main pipeline, enabling the division or combination of fluid flows. Their strategic placement allows for efficient system design, accommodating diverse operational requirements across various sectors. The evolution of these essential components reflects advancements in material science and manufacturing precision, ensuring higher performance, durability, and operational safety in demanding environments.

Modern pipeline engineering relies heavily on the integrity and versatility of pipe tees. From petrochemical refineries to municipal water distribution networks, their ability to withstand extreme pressures, temperatures, and corrosive media is paramount. This article delves into the intricate world of pipe tees, exploring their manufacturing processes, technical specifications, diverse applications, and the critical factors discerning engineers and procurement professionals consider when selecting these vital components.

Industry Trends and Market Dynamics

The global market for industrial fittings, including pipe tees, is experiencing steady growth, driven by expanding infrastructure development, burgeoning energy sectors, and increasing demand for efficient fluid management systems. Key trends include:

• Material Innovation: A shift towards advanced materials such as duplex and super duplex stainless steels, alongside traditional carbon and alloy steels, to enhance corrosion resistance and mechanical strength. The demand for a `stainless steel tee` is particularly robust in chemical processing and marine applications due to its superior durability.
• Smart Manufacturing & Automation: Adoption of Industry 4.0 principles, including IoT-enabled monitoring and automated fabrication, to improve precision, reduce waste, and accelerate production cycles.
• Sustainability & Efficiency: Growing emphasis on products that contribute to energy efficiency and reduce environmental impact, such as optimized flow designs and materials with longer service lives, minimizing replacement frequency.
• Customization: Increasing demand for specialized `side outlet tee` configurations and non-standard dimensions to meet unique project requirements, particularly in bespoke industrial installations.

According to industry reports, the global industrial pipeline fittings market is projected to reach USD 100 billion by 2028, growing at a CAGR of approximately 5-6%. This growth underscores the enduring importance and evolving sophistication of components like pipe tees.

Detailed Manufacturing Process of Pipe Tees

The production of high-quality pipe tees involves a series of meticulously controlled stages, ensuring structural integrity and performance reliability. The primary methods include forging, casting, and cold forming, each suited for different material types and pressure ratings.

Process Flow Overview:

1. Material Selection & Preparation: Raw materials, such as carbon steel (ASTM A234 WPB), alloy steel (ASTM A234 WP5/WP9/WP11/WP22), and various grades of stainless steel (ASTM A403 WP304/316/321), are carefully selected based on application requirements. These arrive as seamless pipes or plates.
2. Cutting & Shaping: The selected material is cut to precise dimensions. For forged tees, billets are cut; for formed tees, sections of pipe are used.
3. Forming/Forging:
   • Hot Extrusion (Seamless Tees): A common method where a straight pipe section is heated, and a die is pushed into the side, extruding the branch. This creates a seamless, high-integrity tee suitable for high-pressure applications.
   • Cold Forming: For certain materials and sizes, cold forming can be used, involving hydraulic pressure to shape the tee at ambient temperatures, enhancing material strength.
   • Forging: For smaller diameters and higher pressure ratings, billets are heated and hammered/pressed into the tee shape. This method results in excellent grain structure and mechanical properties.
   • Welded Fabrication: For larger diameters or specific designs like a `side outlet tee`, the body and branch pieces may be separately formed and then welded together, followed by rigorous non-destructive testing (NDT).
4. Heat Treatment: Depending on the material and forming process, heat treatment (e.g., annealing, normalizing, quenching and tempering) is performed to relieve internal stresses, optimize microstructure, and enhance mechanical properties such like hardness and ductility.
5. Machining & Finishing: CNC machining ensures precise bevels, dimensions, and surface finishes according to standards like ASME B16.9 or ASME B16.11. This stage critical for perfect fit-up and welding.
6. Non-Destructive Testing (NDT): Each tee undergoes stringent quality checks. This includes visual inspection, dimensional verification, ultrasonic testing (UT), magnetic particle inspection (MPI), liquid penetrant inspection (LPI), and radiographic testing (RT) to detect any internal or surface flaws.
7. Hydrostatic Testing: To confirm pressure integrity, selected samples may undergo hydrostatic testing to specified pressure ratings.
8. Surface Treatment & Marking: Cleaning, passivation (for stainless steel), protective coating, and permanent marking with material grade, size, schedule, and manufacturer's logo.

All stages adhere strictly to international standards such as ISO 9001 for quality management, ANSI B16.9/ASME B16.9 for wrought fittings, and ASTM specifications for material composition, ensuring a service life often exceeding 20-30 years in designed conditions. For specific applications requiring a `stainless steel tee`, additional passivation and stringent cleanliness protocols are followed to maximize corrosion resistance.

Technical Specifications and Parameters

Understanding the technical specifications of pipe tees is crucial for proper system design and material selection. Key parameters include:

• Material Grades: Carbon Steel (A234 WPB, WPC), Alloy Steel (A234 WP1, WP5, WP9, WP11, WP22, WP91), Stainless Steel (A403 WP304, 304L, 316, 316L, 321, 347), Duplex/Super Duplex Stainless Steel (S31803, S32750, S32760).
• Dimensions: Ranging from NPS 1/2" to 72" (DN15 to DN1800) for seamless, and up to larger sizes for welded.
• Wall Thickness (Schedule): SCH 10, SCH 20, SCH 30, STD, SCH 40, SCH 60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS.

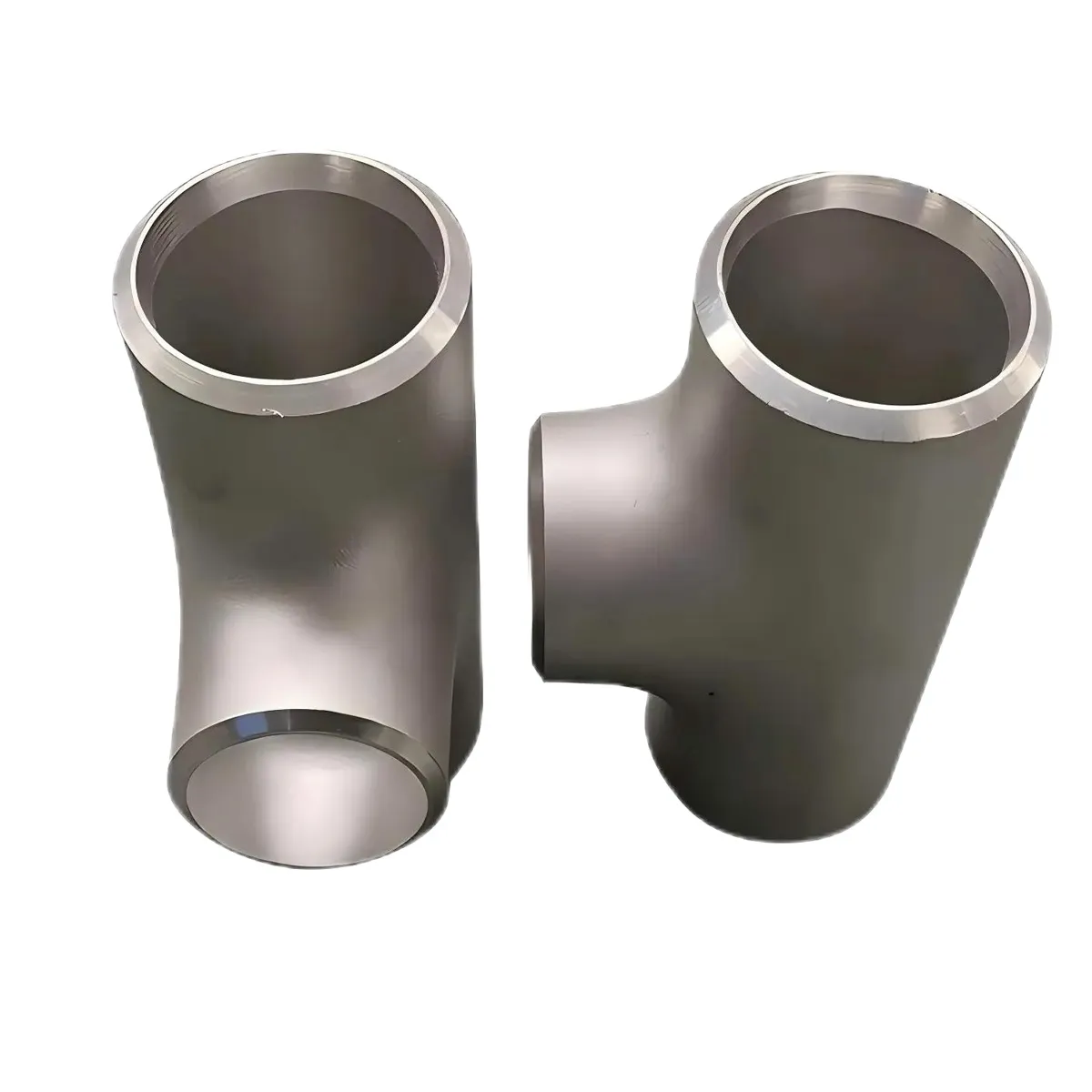

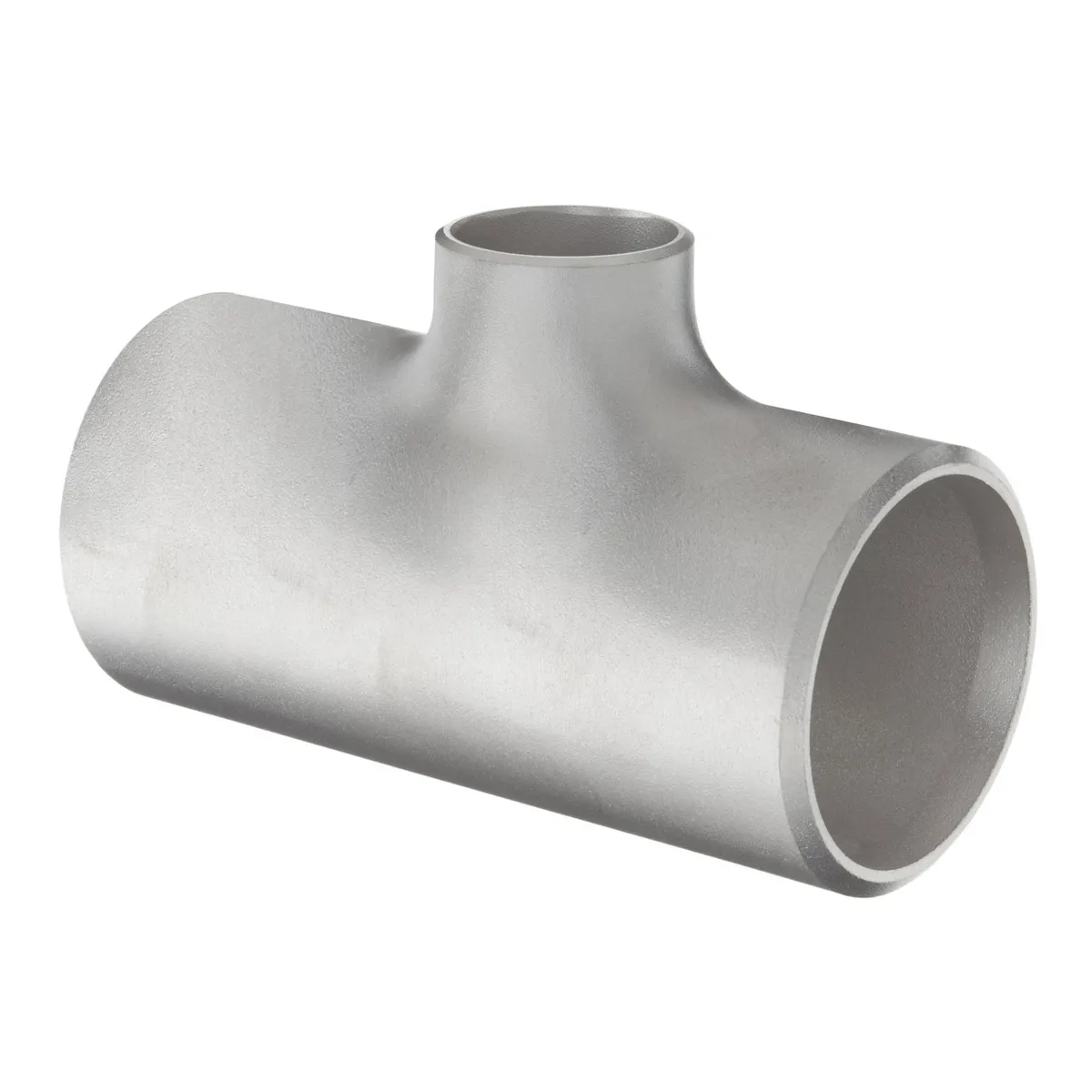

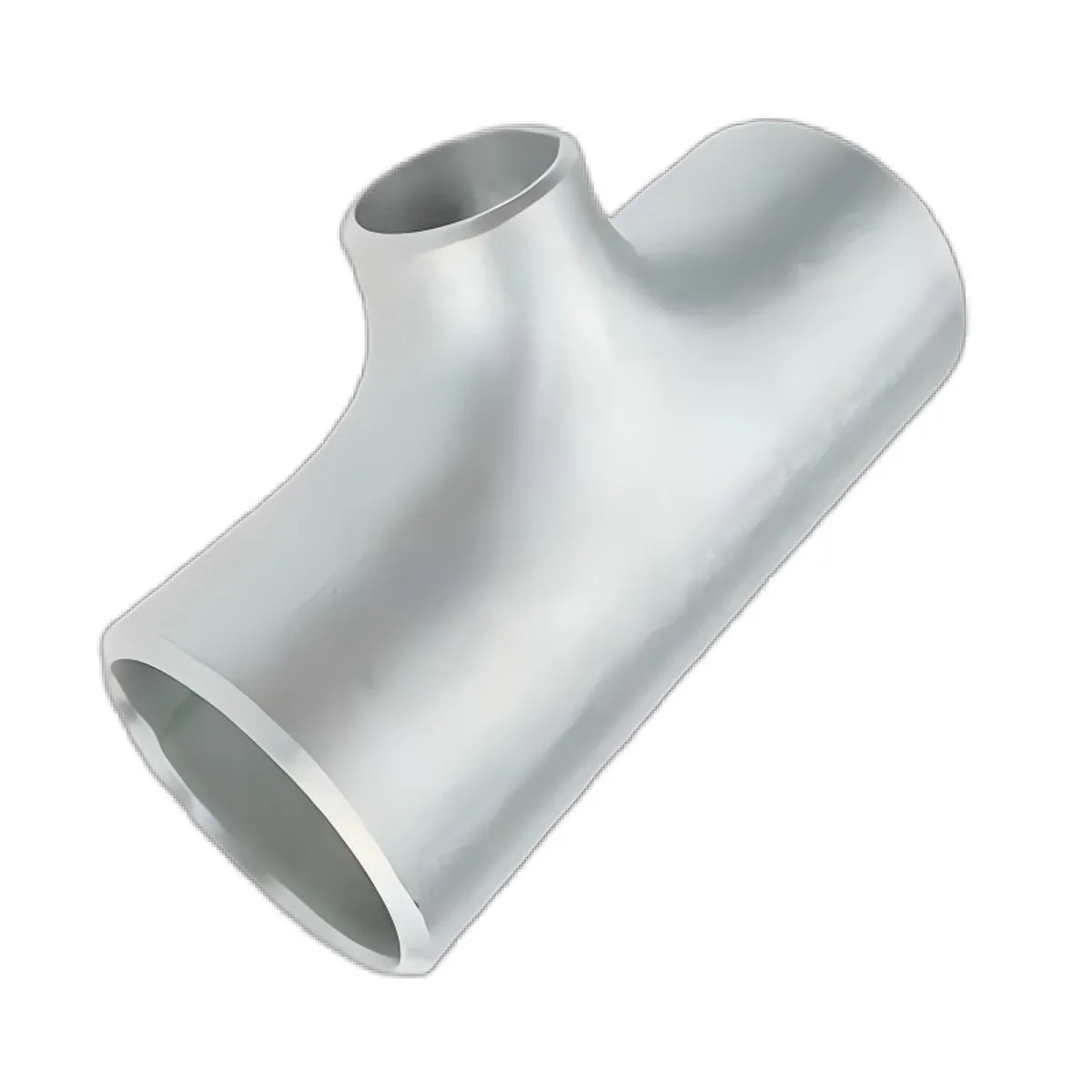

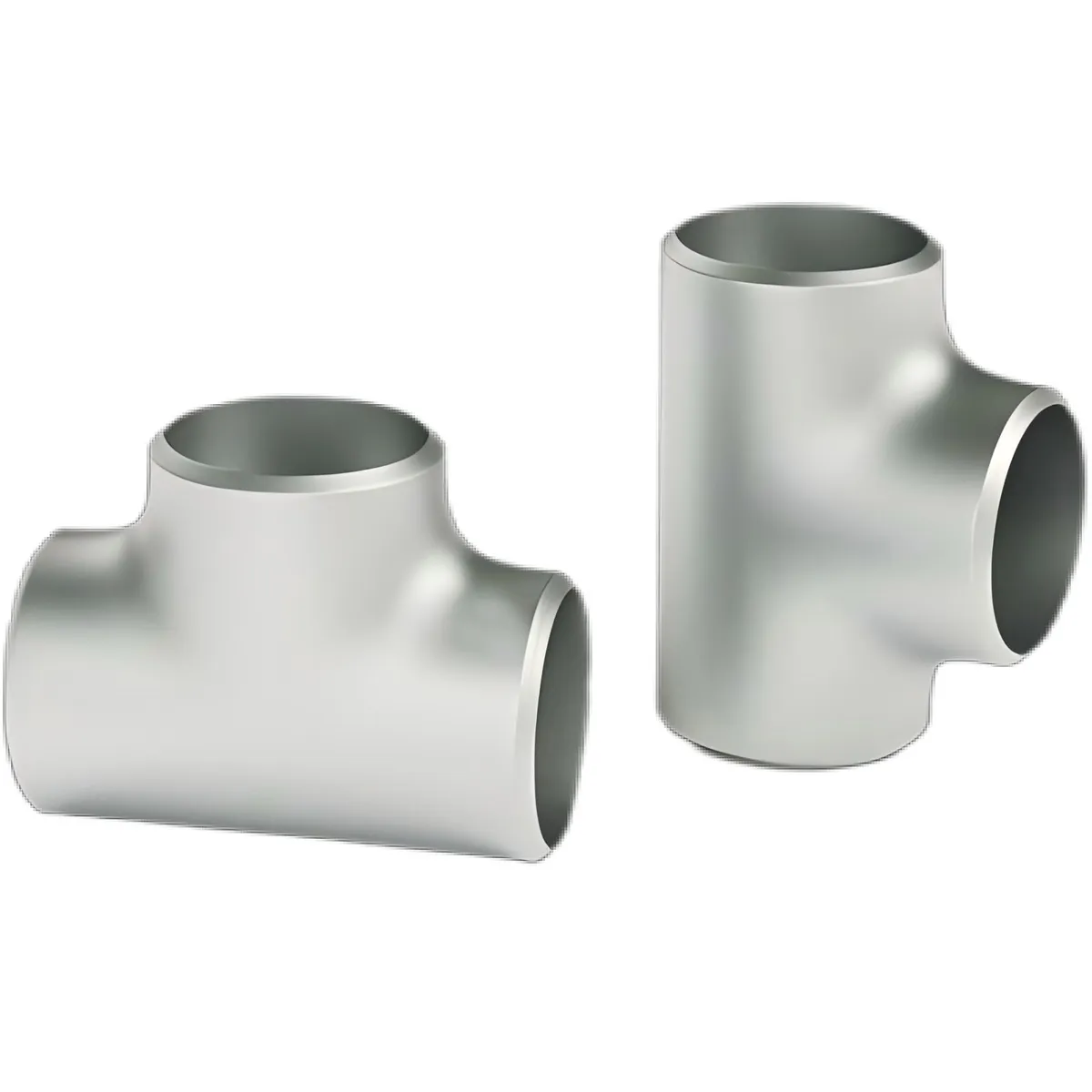

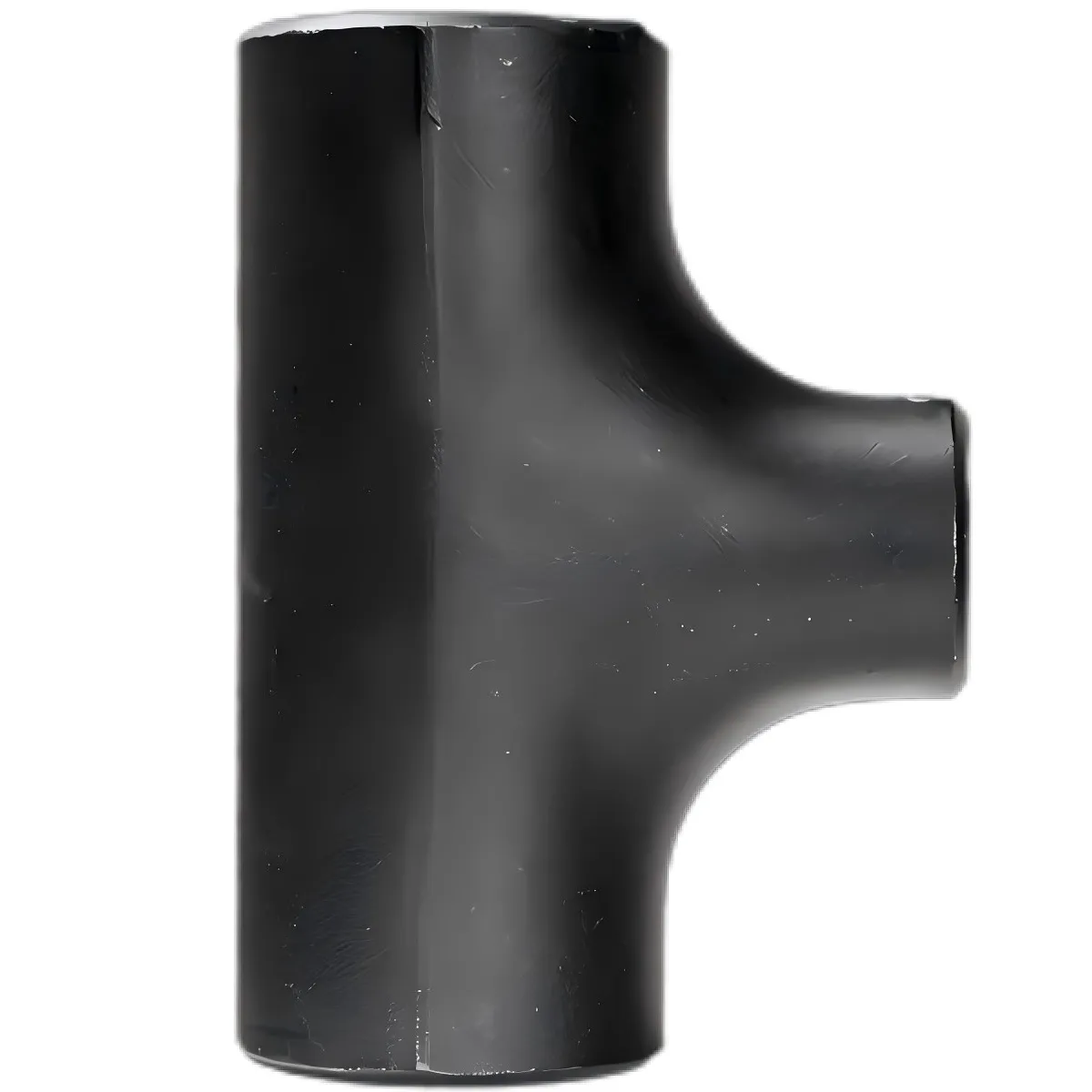

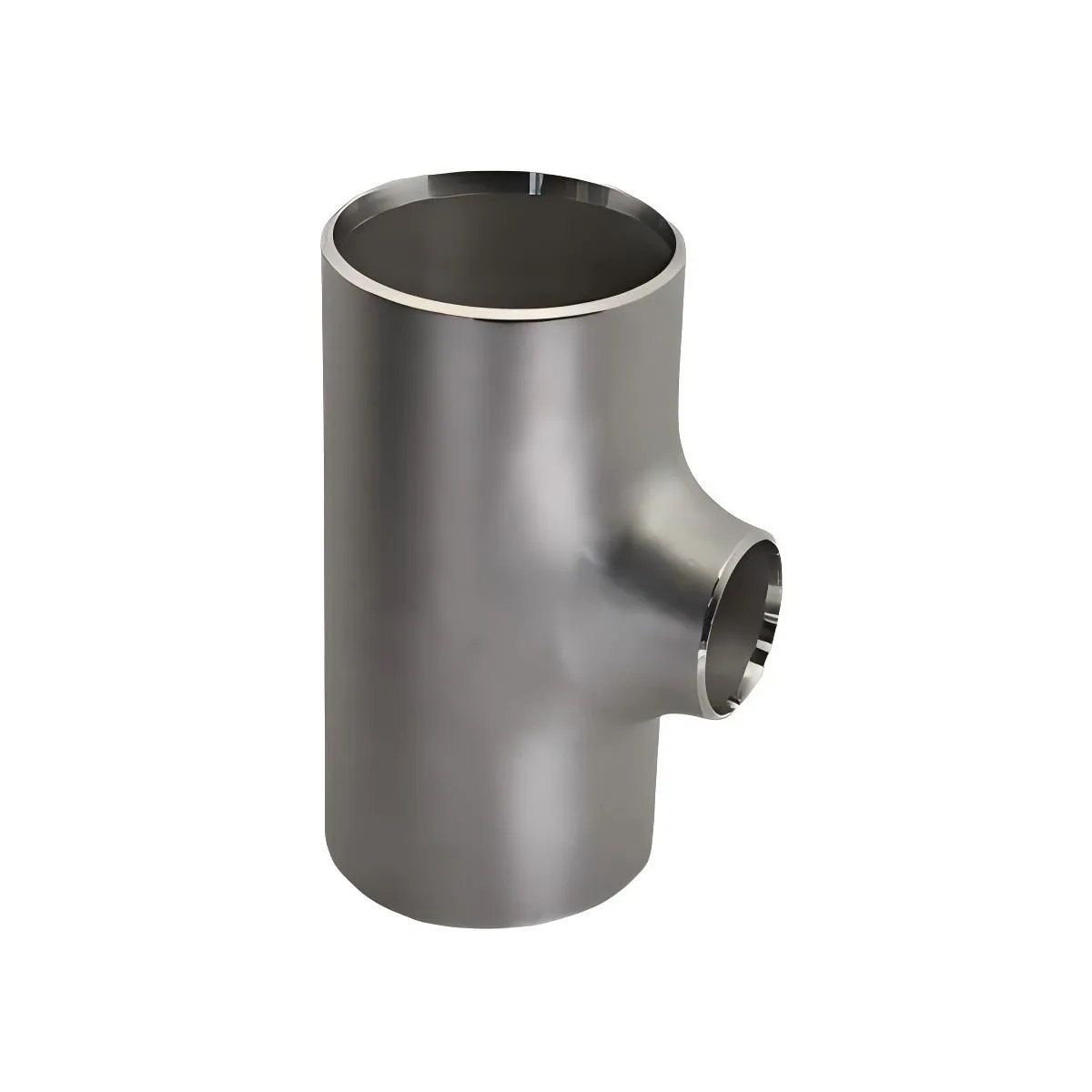

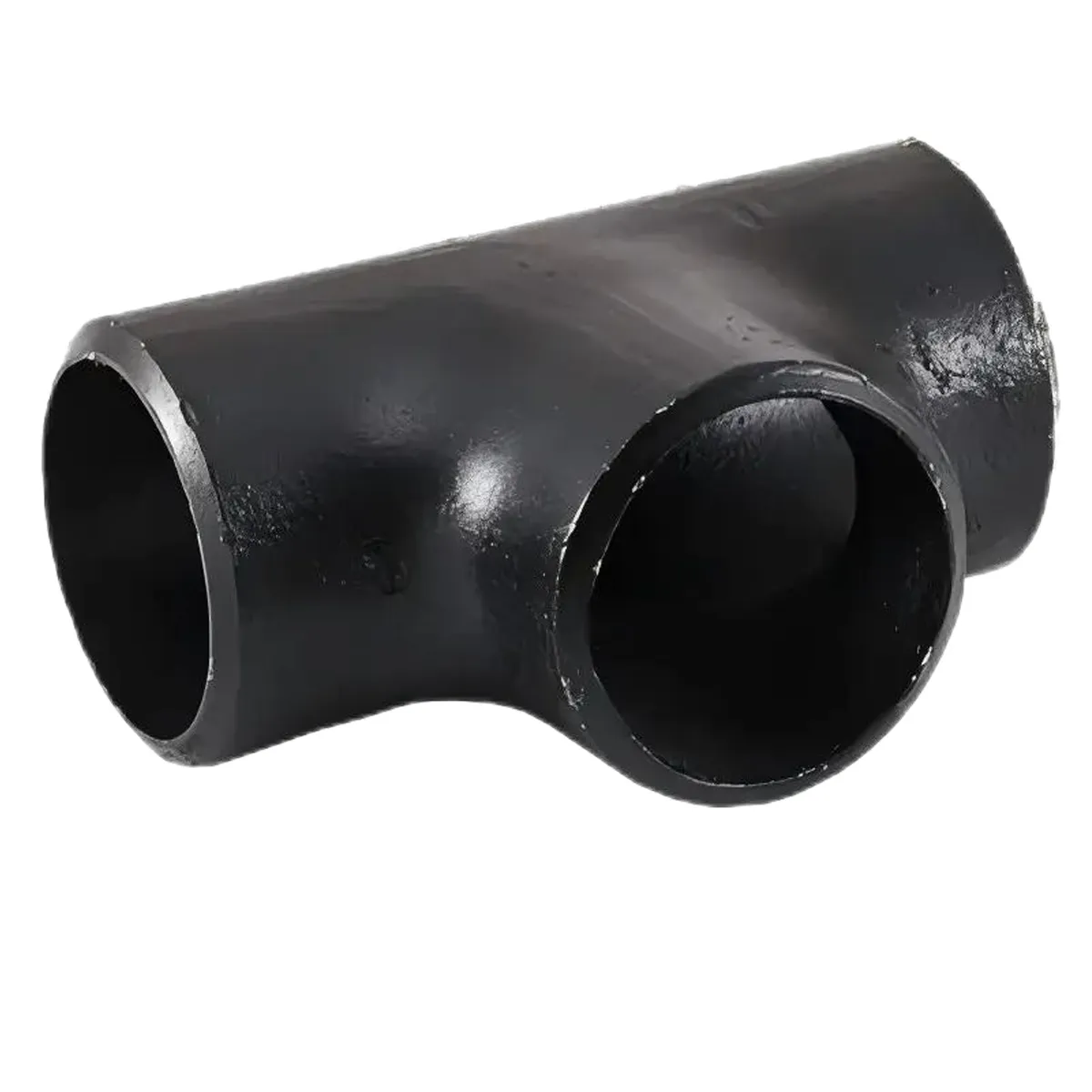

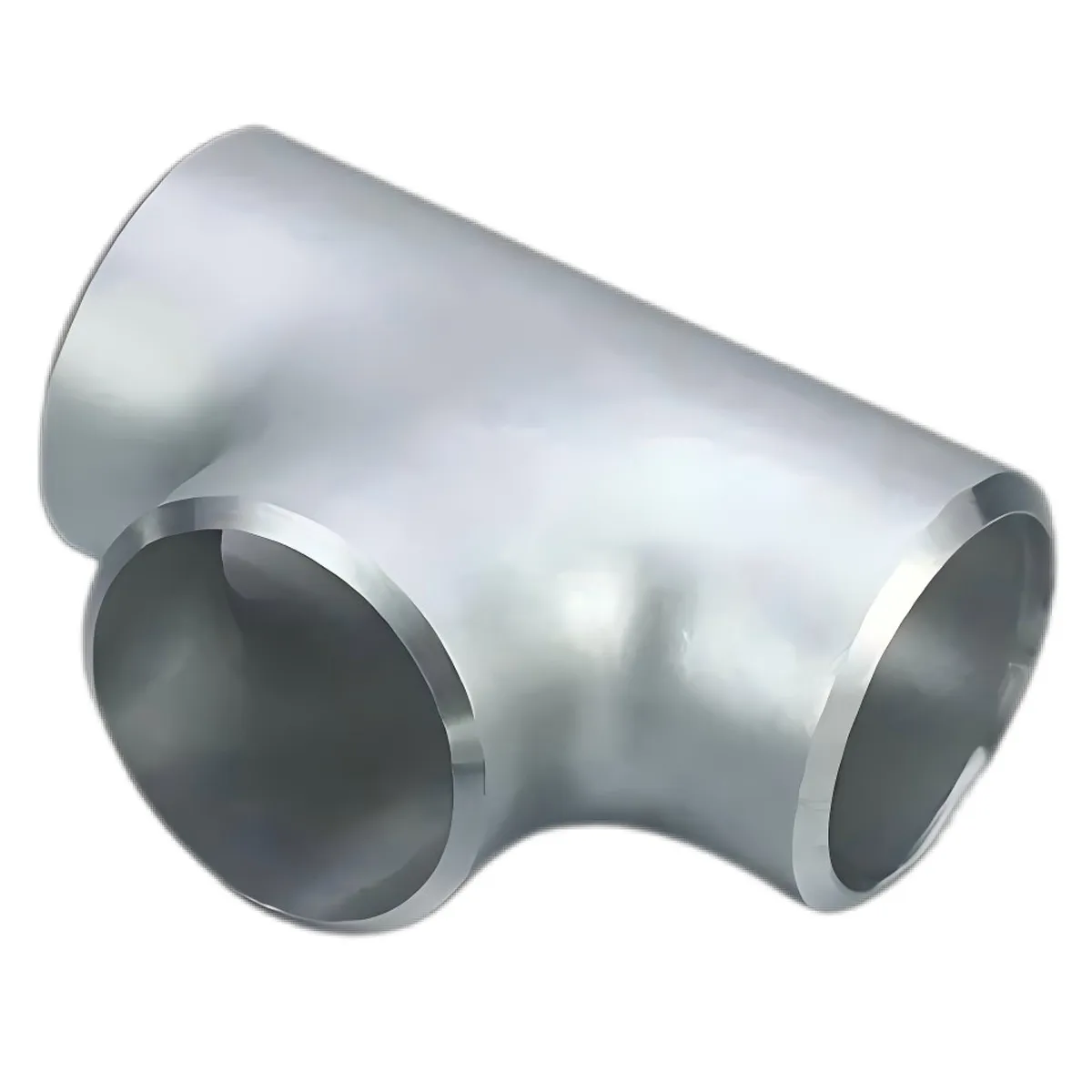

• Types: Equal Tee (straight tee), Reducing Tee, Barred Tee, Lateral Tee, `Side Outlet Tee` (e.g., street tee), Wye Tee.
• End Connections: Butt-weld, Socket-weld, Threaded (NPT, BSPT).
• Manufacturing Standards: ASME B16.9 (Butt-weld), ASME B16.11 (Socket-weld & Threaded), MSS SP-79, MSS SP-83, MSS SP-97.

Typical Product Specification Table (Butt-Weld Equal Tee)

Application Scenarios and Technical Advantages

The versatility of pipe tees makes them indispensable across a multitude of industrial sectors. Their primary function is to allow for diversion or confluence of fluid flow, crucial for system flexibility and operational efficiency.

Target Industries:

• Petrochemical & Oil & Gas: For crude oil and natural gas transportation, refining processes, and chemical production. The need for robust materials like alloy steel tees to handle high pressures and corrosive media is critical.
• Power Generation: In steam lines, cooling water systems, and fuel supply lines in thermal, nuclear, and hydroelectric power plants.
• Water Supply & Drainage: Municipal water distribution, wastewater treatment, and irrigation systems, often utilizing carbon steel or `stainless steel tee` for potable water.
• Shipbuilding & Marine: Seawater cooling systems, ballast systems, and fuel lines where corrosion resistance (e.g., duplex `stainless steel tee`) is paramount.
• Metallurgy & Mining: Slurry transport, process water, and chemical lines in harsh operating environments.
• Food & Pharmaceutical: Sanitary applications require highly polished `stainless steel tee` fittings to prevent contamination and facilitate easy cleaning.

Technical Advantages in Application:

• Corrosion Resistance: Especially with `stainless steel tee` options, offering longevity in aggressive chemical environments, saltwater, or high-humidity conditions, significantly reducing maintenance costs.
• High Pressure & Temperature Rating: Forged and seamless tees, particularly those made from alloy steels, are engineered to withstand extreme operating conditions, preventing leaks and ensuring system integrity.
• Energy Saving: Properly designed and smooth-bore `pipe tees` minimize turbulent flow and pressure drops, contributing to lower pumping energy requirements across large pipeline networks.
• Structural Integrity: Manufacturing methods like hot extrusion and forging produce fittings with optimal grain structure, offering superior mechanical strength and fatigue resistance compared to welded alternatives.
• Versatility: Available in a vast array of materials, sizes, and configurations (e.g., reducing tee, `side outlet tee`), enabling precise customization for any piping layout.

Vendor Comparison and Customized Solutions

Choosing the right supplier for industrial pipe tees is as critical as selecting the correct fitting. A reputable vendor offers not only quality products but also expertise, flexibility, and comprehensive support.

Key Vendor Comparison Criteria:

Customized Solutions:

Many industrial projects require more than standard fittings. Leading manufacturers excel in providing customized pipe tees tailored to specific project demands. This includes:

• Special Dimensions: Non-standard diameters, branch sizes, or eccentric reducing tees.
• Exotic Materials: Hastelloy, Inconel, Monel, and other high-performance alloys for extreme environments.
• Enhanced Corrosion Protection: Internal linings, specialized coatings, or passivation treatments for `stainless steel tee` in ultra-corrosive media.
• Pressure Vessel Code Compliance: Manufacturing to specific codes like ASME Section VIII for critical applications.
• Integrated Solutions: Combining tees with other fittings or specialized fabrications for modular construction.

Application Case Studies

Real-world applications demonstrate the critical role and reliable performance of high-quality pipe tees.

Case Study 1: Offshore Oil & Gas Platform

Challenge: An offshore platform required robust fittings for its high-pressure crude oil and gas separation lines, operating in corrosive saltwater environments and subjected to dynamic stresses. Standard carbon steel fittings showed premature degradation.

Solution: Installation of forged Super Duplex `stainless steel tee` (UNS S32750) fittings, manufactured to ASME B16.9 and rigorously tested. These tees offered superior resistance to chloride-induced stress corrosion cracking and pitting, along with exceptional tensile strength, ensuring long-term integrity and safety.

Case Study 2: Municipal Water Treatment Plant Upgrade

Challenge: Upgrading a legacy water treatment plant's distribution network to handle increased capacity and ensure potable water quality. The existing cast iron tees were prone to leaks and internal corrosion, affecting water purity and increasing maintenance.

Solution: Phased replacement with high-grade ASTM A403 WP316L `stainless steel tee` fittings. These provided excellent resistance to waterborne corrosion and disinfectant chemicals, ensuring no leaching into the potable water stream. The smoother internal surface also minimized biological fouling, contributing to energy savings in pumping and reducing the need for chemical cleaning.

Case Study 3: Chemical Processing Facility Expansion

Challenge: Expanding a chemical plant's pipeline network that handles highly aggressive acids and alkalis at elevated temperatures. The design required numerous precise branching points, including specific `side outlet tee` configurations to integrate new processing units without disrupting the main flow.

Solution: Custom-fabricated Alloy 20 (UNS N08020) `pipe tees` were supplied, including several specialized `side outlet tee` designs. These fittings were produced via a combination of forging and precise CNC machining, followed by extensive NDT, to ensure absolute resistance to the chemical attack and seamless integration into the existing infrastructure. The solution minimized welding points and ensured robust, leak-proof connections, critical for safety and operational continuity.

Trustworthiness: FAQ, Lead Time, Warranty, & Support

Frequently Asked Questions (FAQ)

Lead Time & Fulfillment

Our advanced manufacturing facilities and optimized supply chain allow for efficient order processing and delivery. We maintain a substantial inventory of common pipe tees in various materials and sizes for immediate dispatch. For bespoke or large-scale project requirements, a dedicated project manager ensures timely production and adherence to agreed-upon schedules, from raw material procurement to final inspection and logistics.

Customer Support and After-Sales Service

Our commitment extends beyond delivery. We provide comprehensive after-sales support, including technical consultation, installation guidance, and swift resolution of any product-related inquiries. Our team of experienced engineers and customer service professionals is available to assist with product selection, troubleshooting, and ensuring optimal performance throughout the lifecycle of our `pipe tees`.

For support, please contact us via:

• Email: sales@hbjypipeline.com
• Phone: +86-317-555xxxx (example)
• Website: Visit our contact page at www.hbjypipeline.com

Conclusion

The strategic significance of high-quality industrial fittings, particularly `pipe tees`, cannot be overstated in modern fluid transfer systems. As industries continue to demand greater efficiency, reliability, and sustainability, the evolution of these components, driven by material science advancements and precision manufacturing, ensures that pipeline networks remain robust and resilient. Partnering with a reputable manufacturer committed to stringent quality control, comprehensive technical support, and flexible customization options is paramount for achieving optimal project outcomes and ensuring long-term operational excellence.

References

1. ASME B16.9-2018. Factory-Made Wrought Buttwelding Fittings. American Society of Mechanical Engineers.
2. ASTM A234/A234M-17. Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High-Temperature Service. ASTM International.
3. ASTM A403/A403M-20. Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings. ASTM International.
4. ISO 9001:2015. Quality management systems – Requirements. International Organization for Standardization.
