A Practical Guide to Elbow Pipe Types for Real-World Projects

I’ve walked more job sites than I can count, and honestly, elbows are the quiet heroes of flow control. When someone asks which elbow to choose, I don’t jump to “the 90”—I ask about media, pressure, layout, and maintenance windows. That’s where the story of elbows really begins.

What counts as an elbow—and why it matters

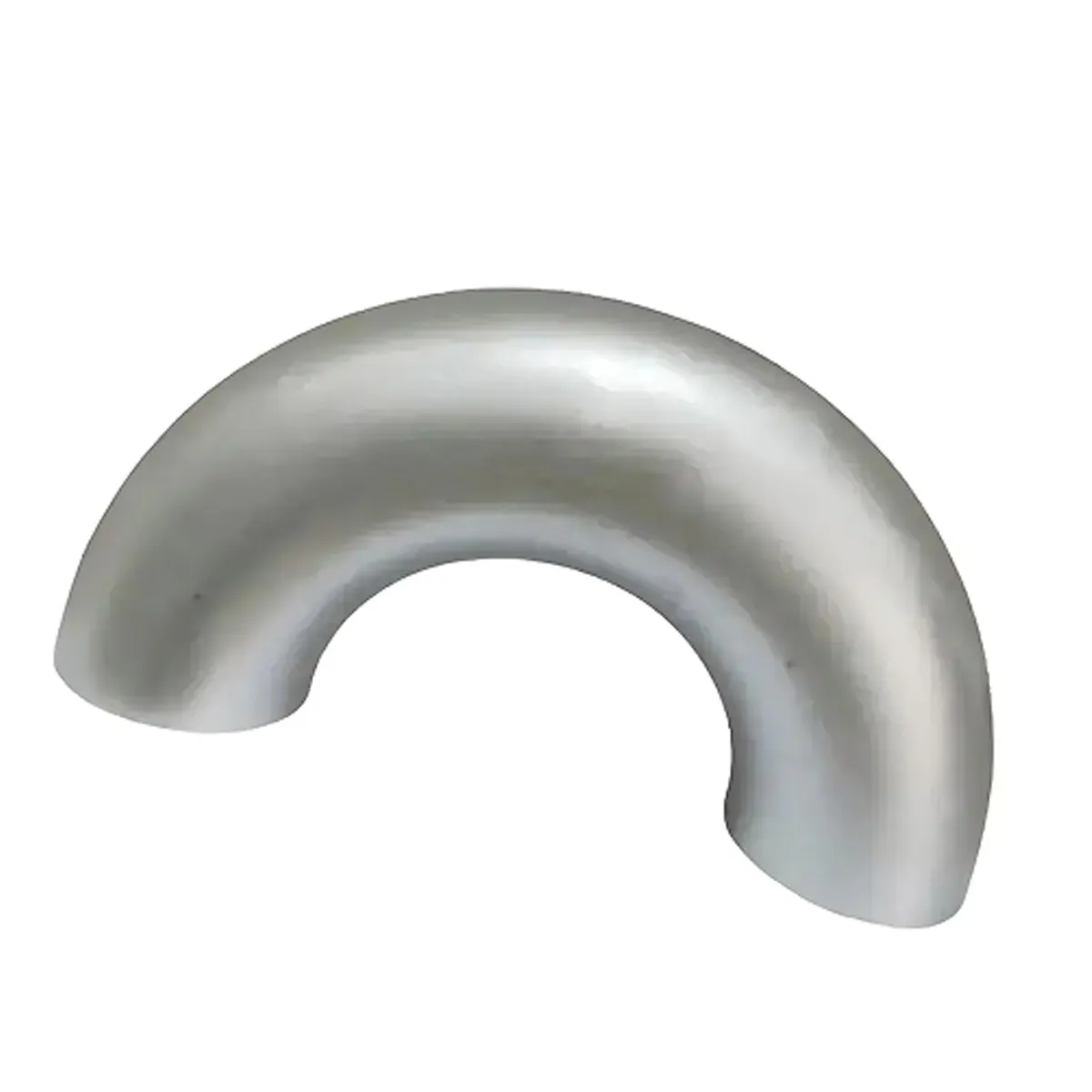

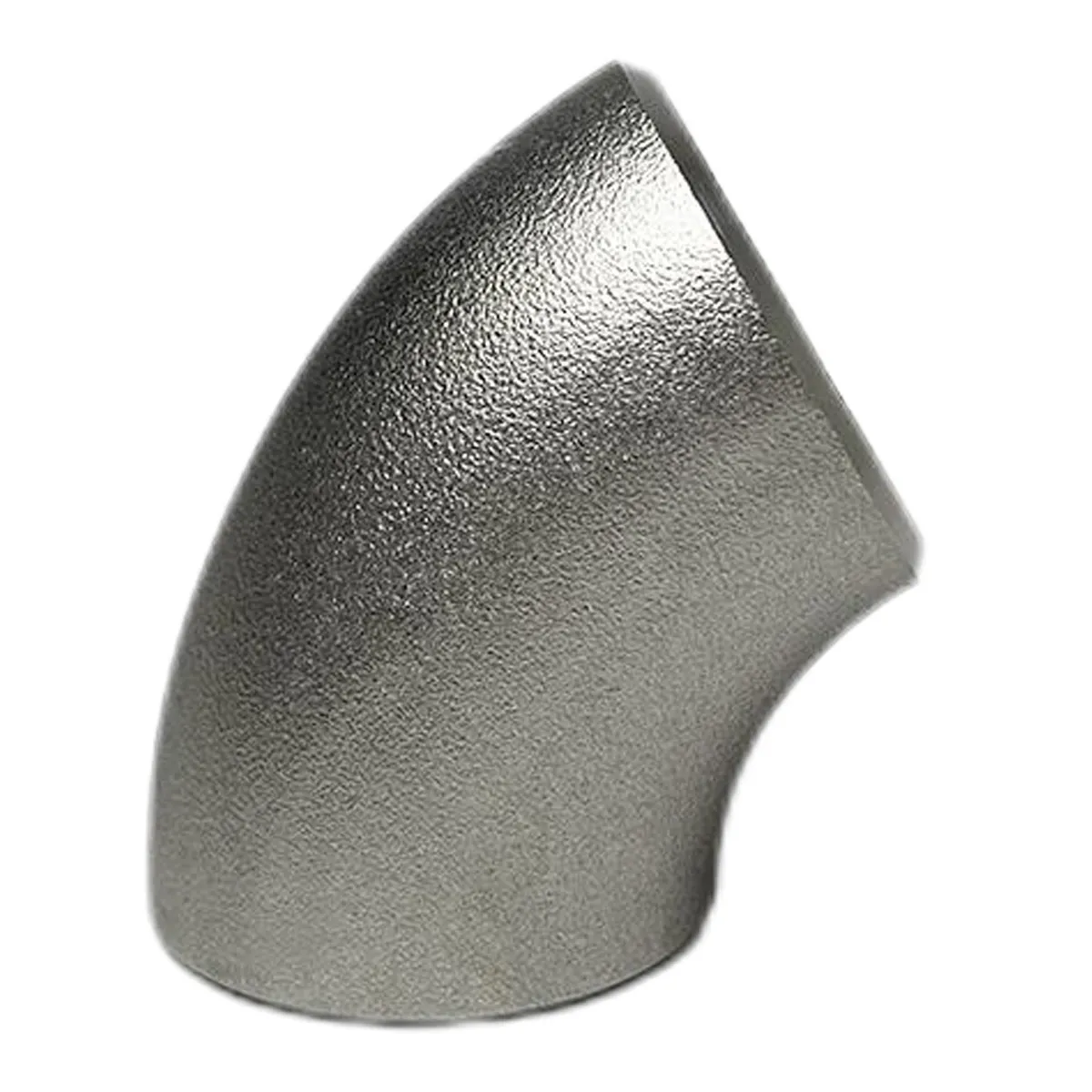

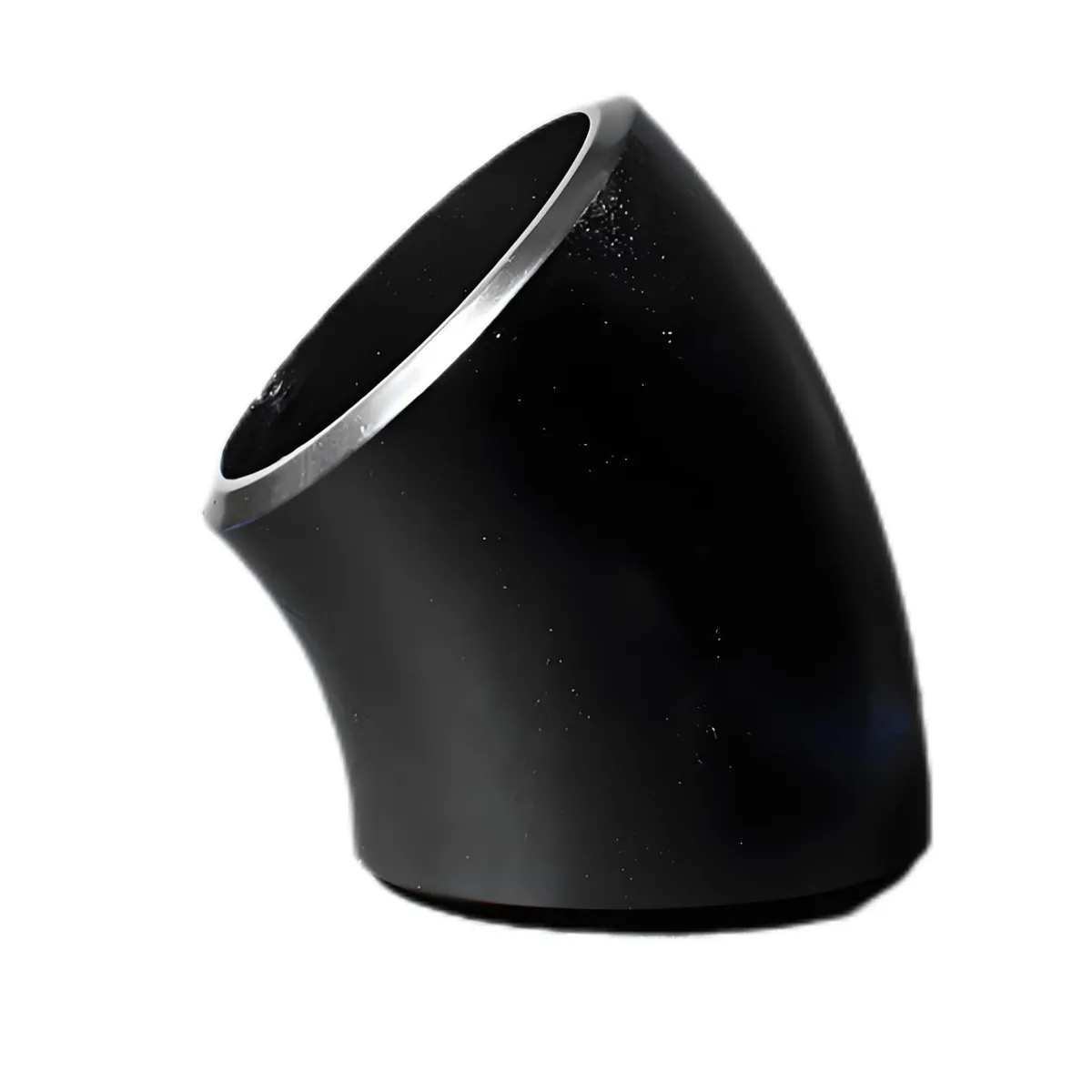

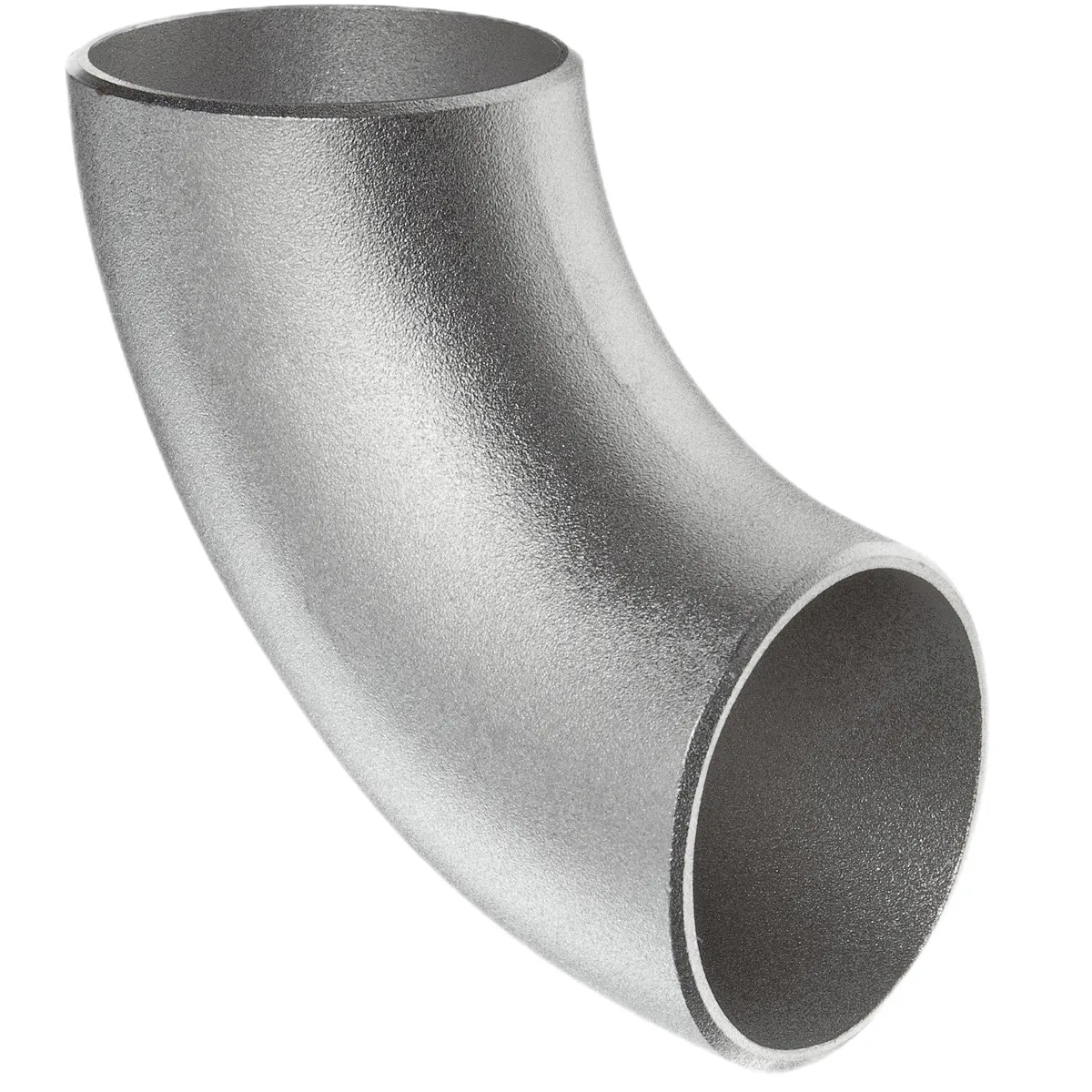

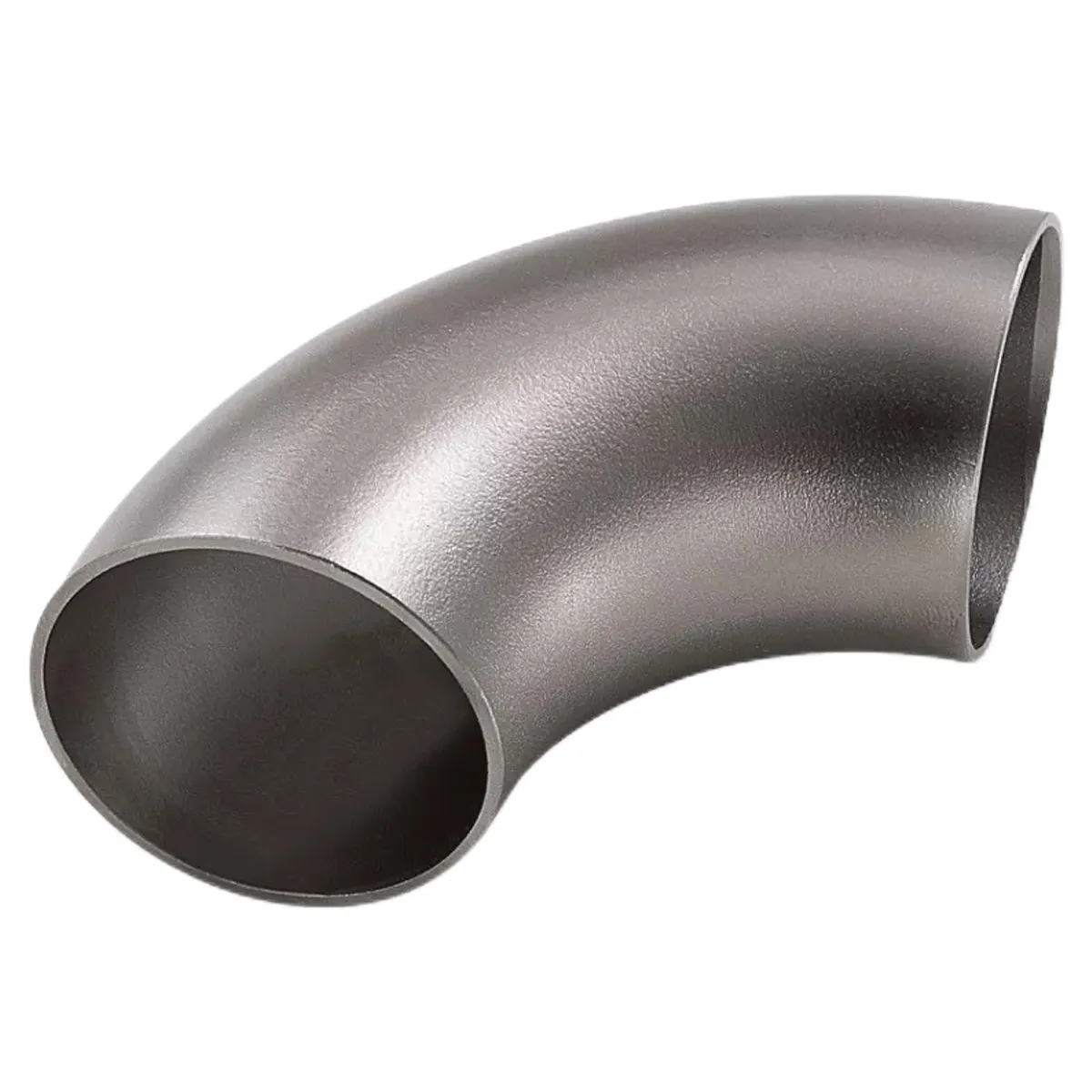

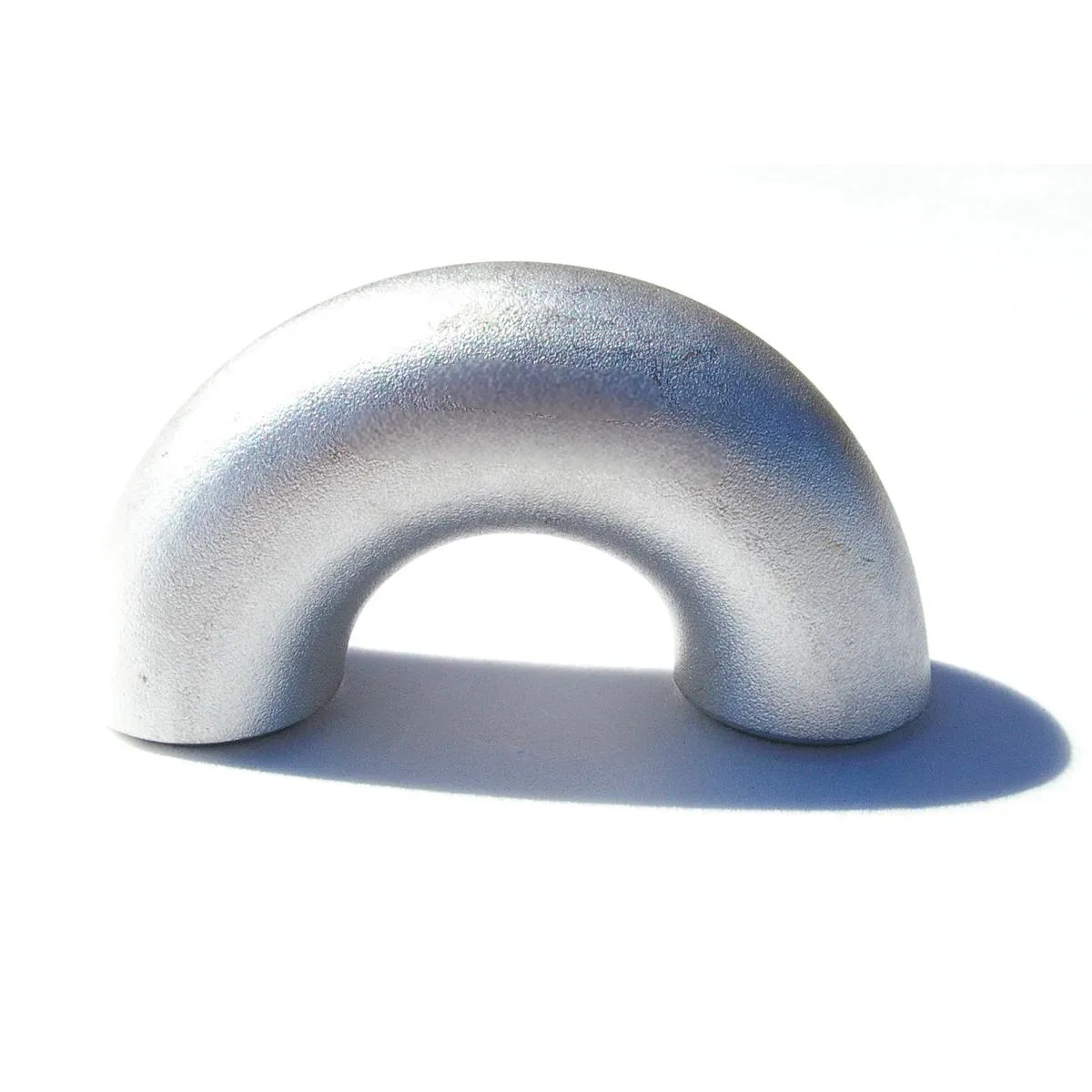

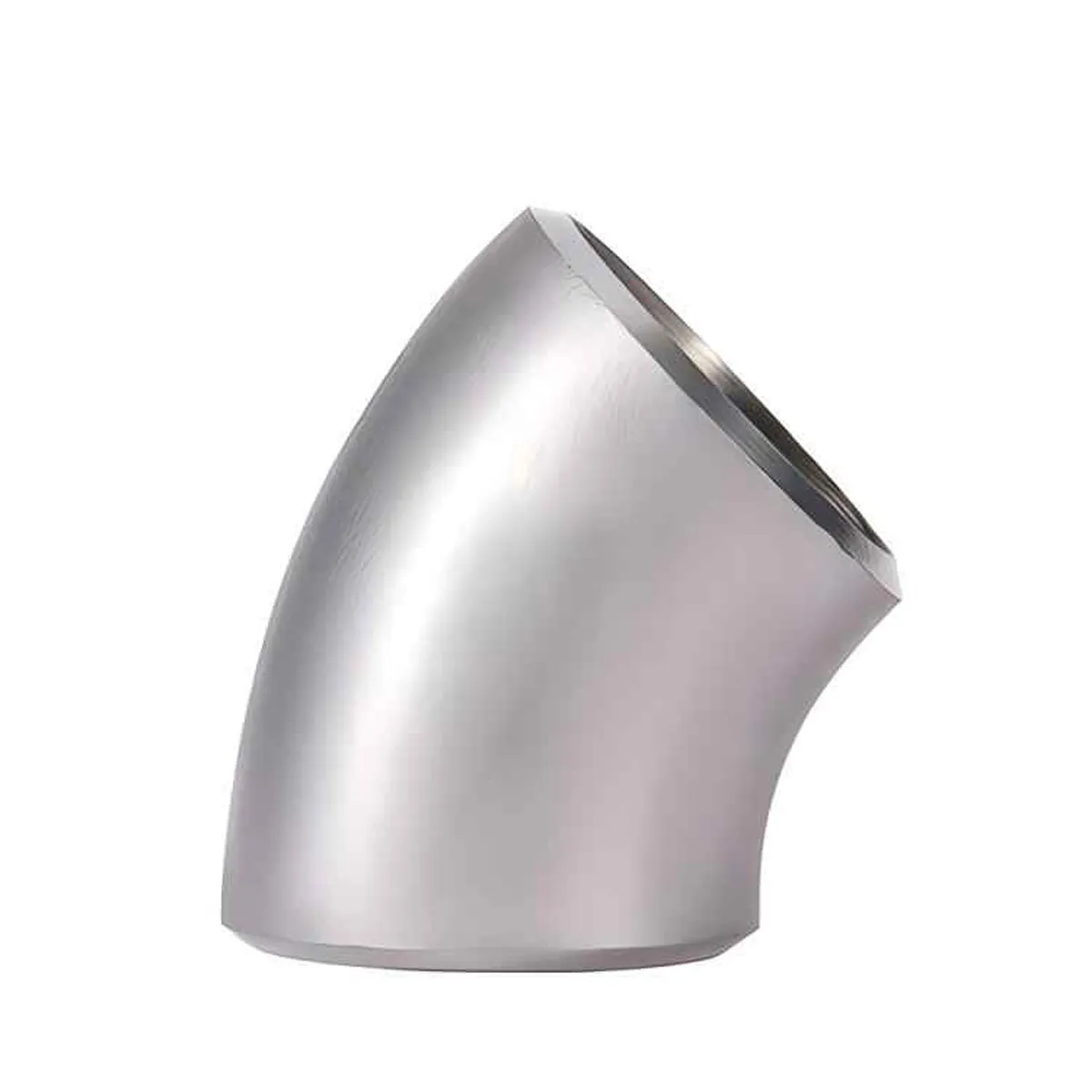

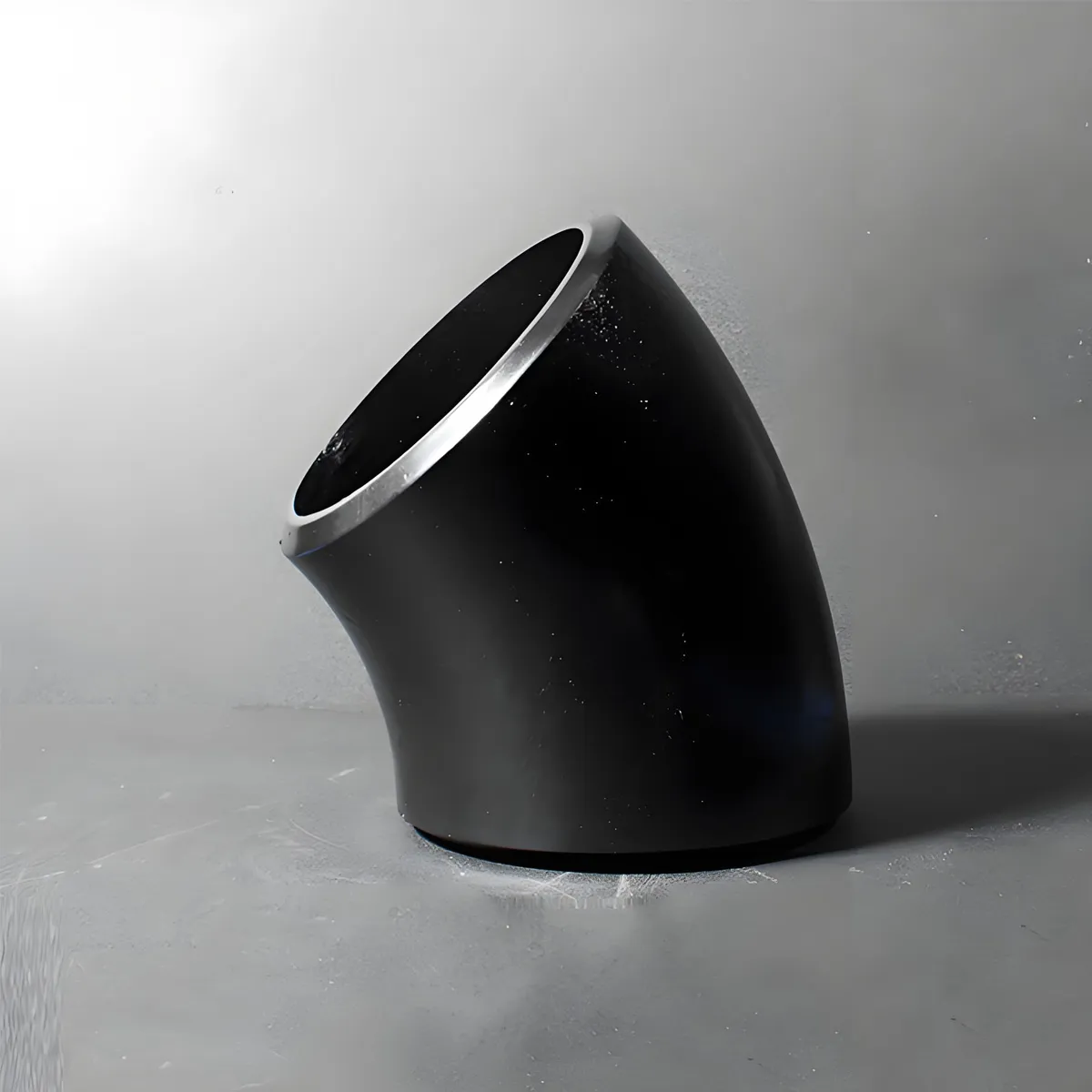

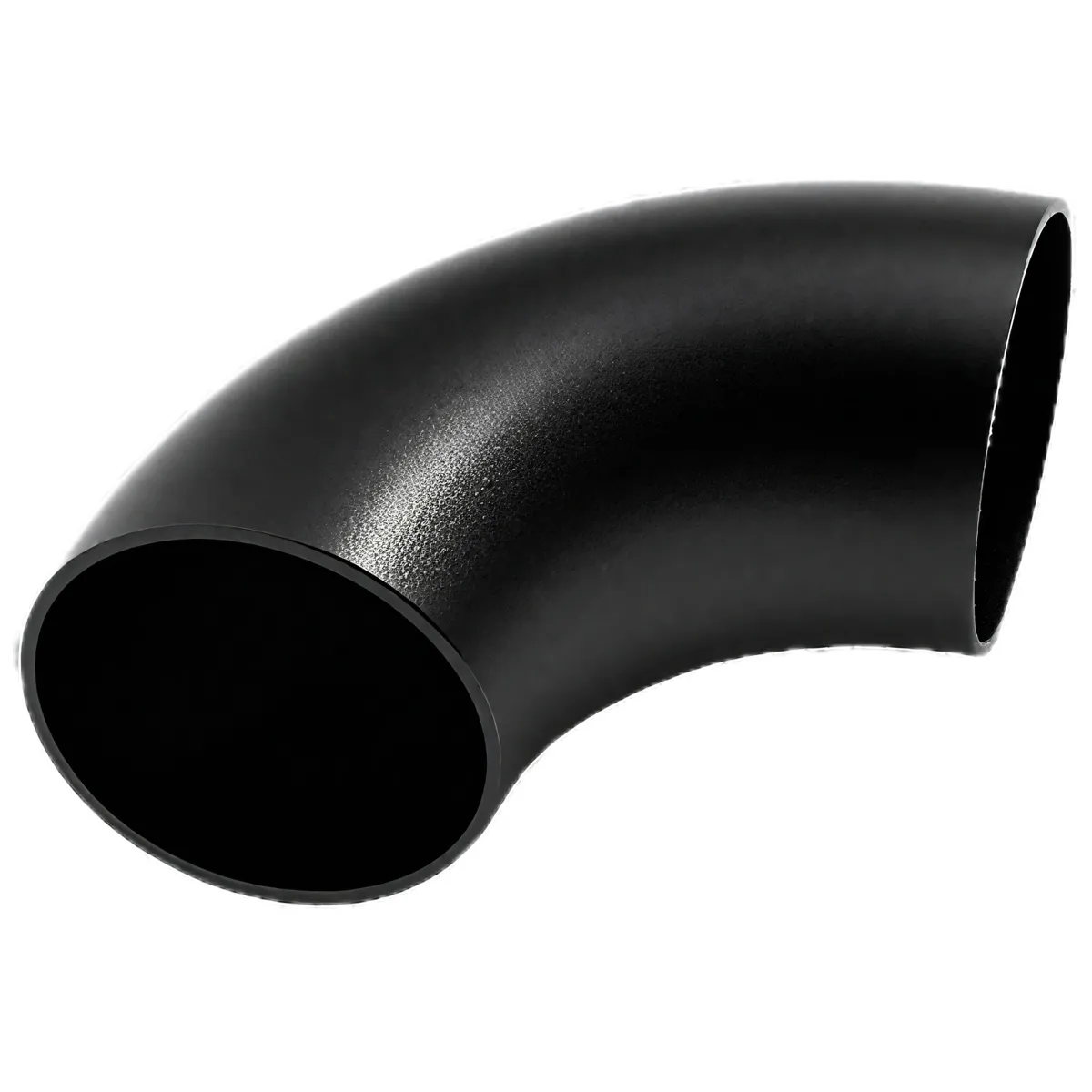

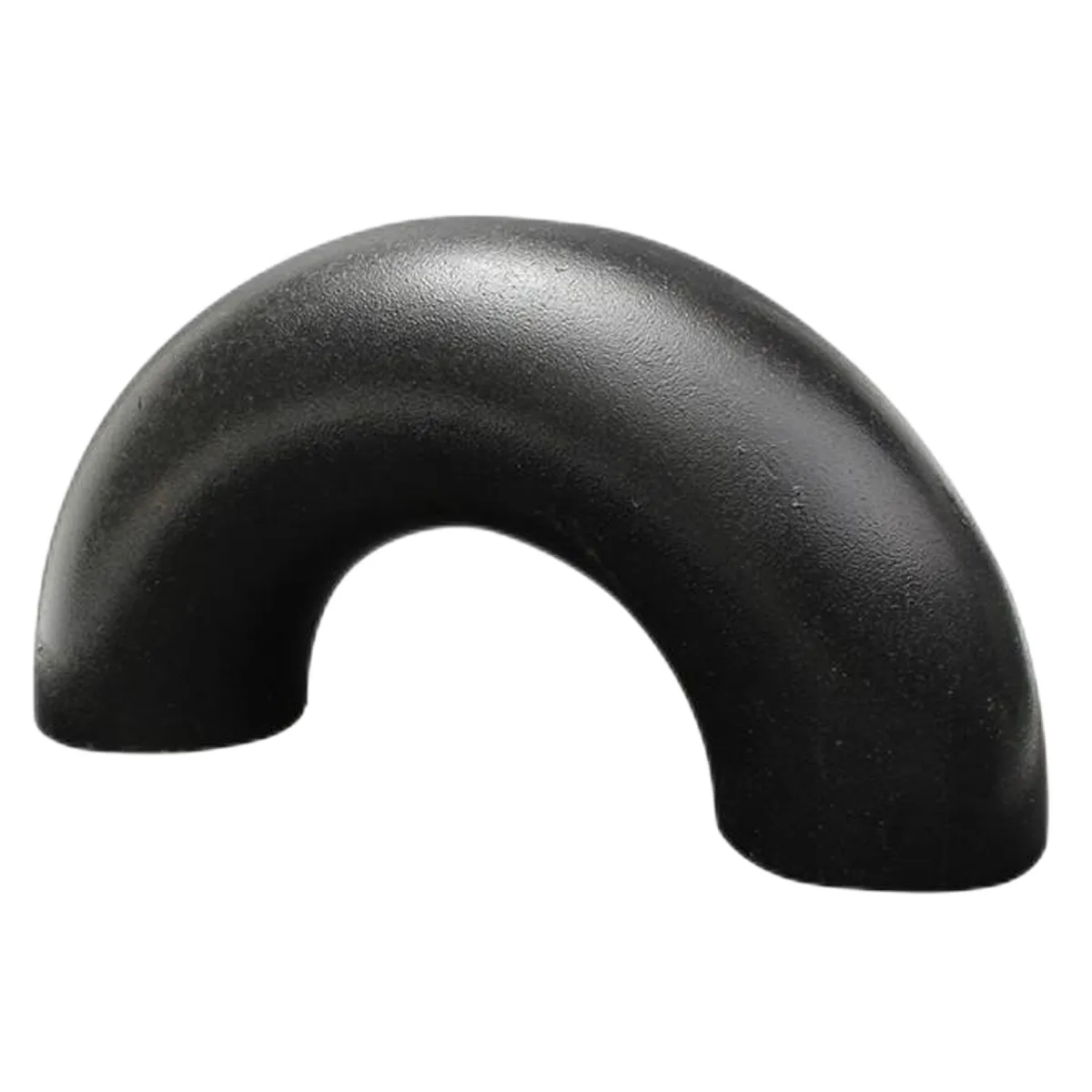

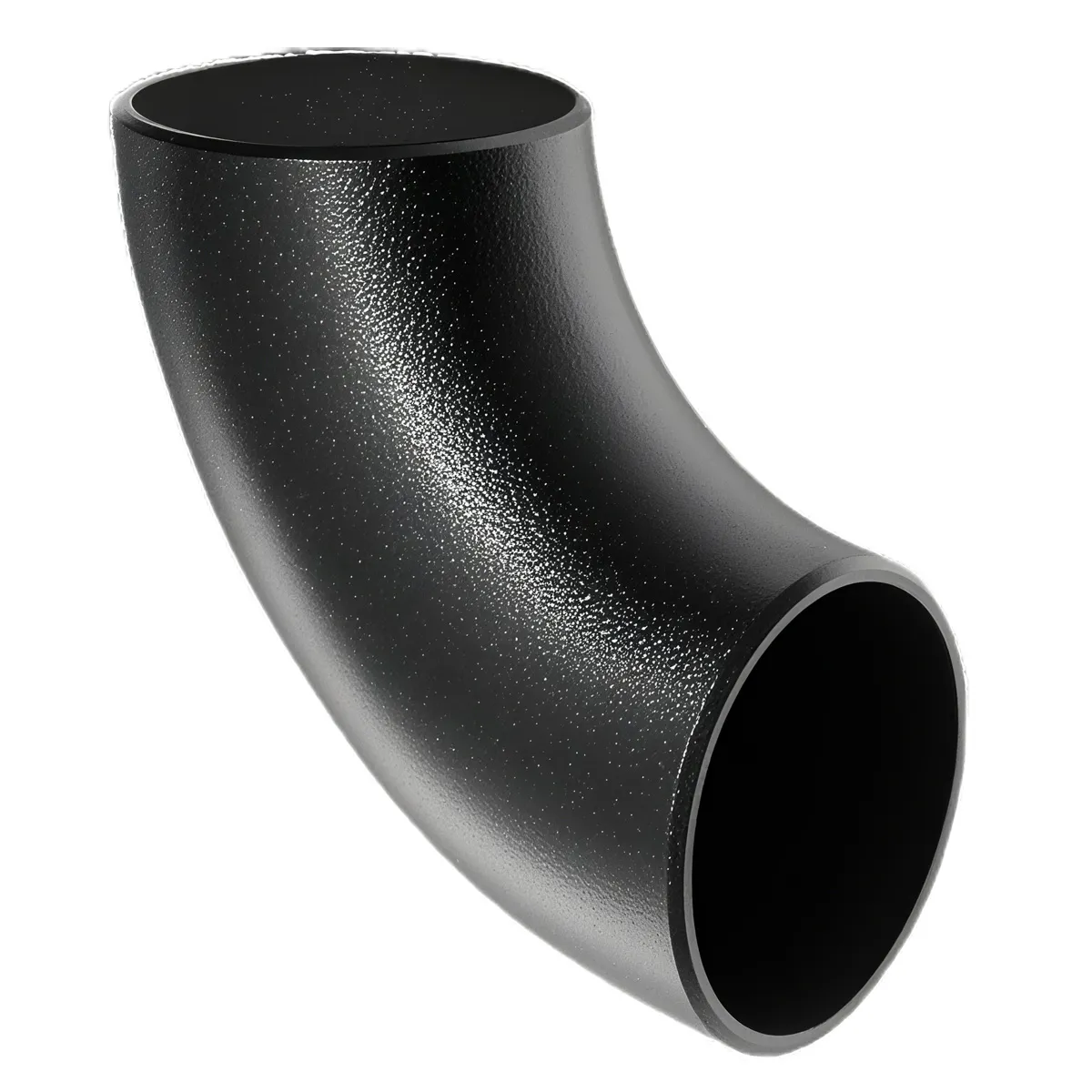

“Elbows” change direction—usually 45°, 90°, or 180°. Long radius (LR, 1.5D or 3D) keeps flow smoother with lower pressure loss; short radius (SR, 1D) fits tight spaces but adds turbulence. You’ll also see butt-weld, socket-weld, and threaded ends. In fact, choosing right here can save pumps—and headaches—later.

Key specifications (field-proven)

Angles	45°, 90°, 180°; custom bends (15°–135°) on request
Nominal sizes	DN15–DN1200 (1/2"–48")
Radius options	SR (1D), LR (1.5D), 3D; tighter radii ≈ more loss
Materials	ASTM A234 WPB, ASTM A420 WPL6, ASTM A403 304/316L, Alloy P11/P22, Duplex/Super Duplex
Pressure classes	PN16–PN160; ASME Class 150–2500
Ends	Beveled per ASME B16.25, SW, NPT/BSPT
Coatings	Black, hot-dip galvanized, FBE/3LPE, paint—real-world durability varies
Tests	Hydrostatic ≥1.5× design P; NDE UT/RT/PT/MPI per procedure
Standards	ASME B16.9, MSS SP-75, ISO 9001 QMS
Service life	≈20–30 years under typical duty; corrosives may shorten

How they’re made (short version)

Material prep → hot induction bending or cold forming → heat treatment (normalizing/tempering) → bevel machining → shot blasting → coating → marking and packing. QA includes PMI, dimensional checks to ASME B16.9, hardness, hydro, and NDE. I’ve seen good shops reject parts that “look fine” but miss wall-thickness at the intrados—thankfully.

Compliance and data points

Certifications: ISO 9001, PED (where required), MTR traceability. Typical hydro test records show no leak at 1.5× design pressure for 10–30 min; UT coverage ≥100% on critical lots. For sour service, NACE MR0175 material selection is a must.

Where Elbow Pipe Types shine

Oil & Gas: LR 90° for trunk lines; 3D elbows to curb erosion at high velocity.
Power/Boilers: Alloy steel elbows for 540–600°C lines.
HVAC/Fire: SR elbows in tight shafts—cost-effective.

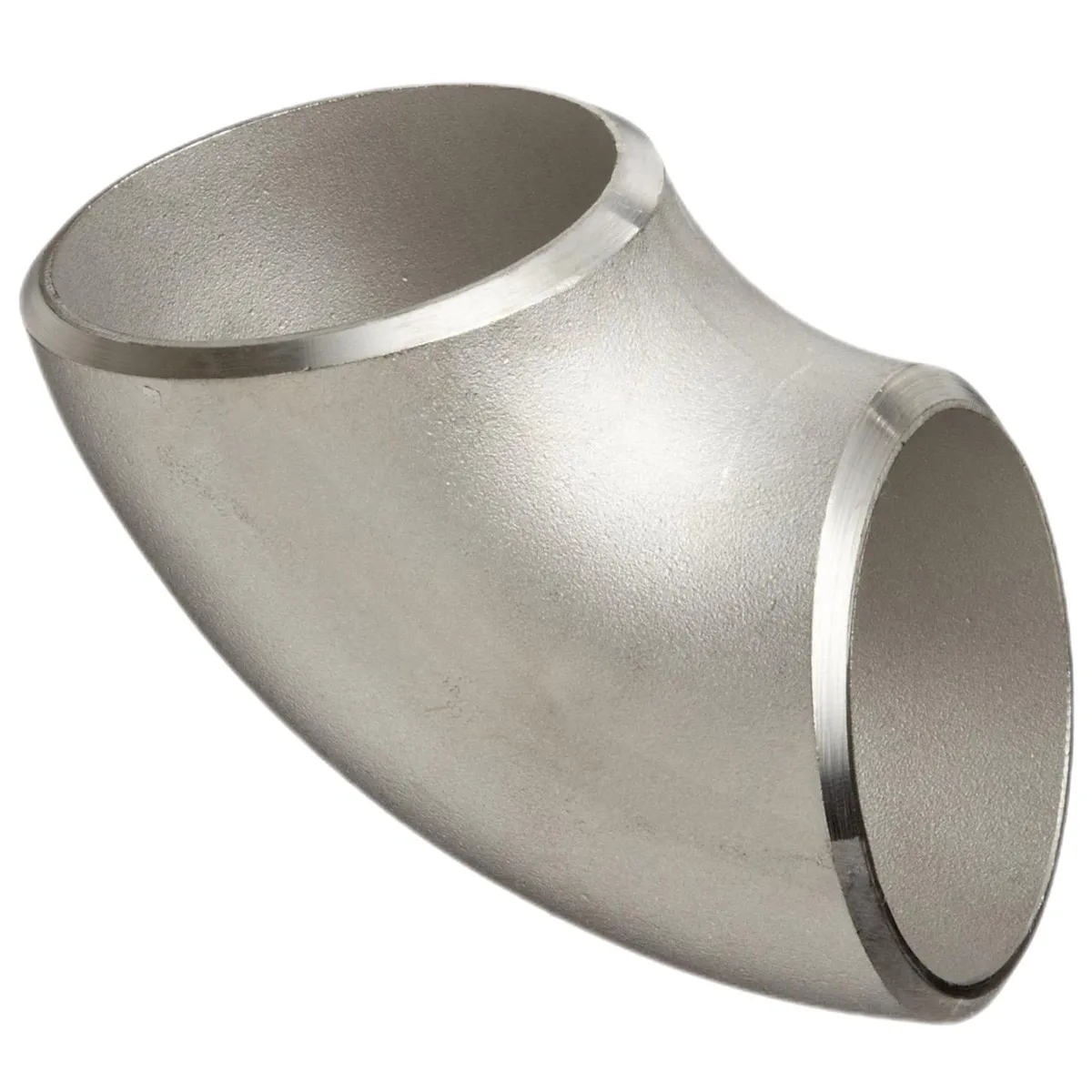

F&B/Chem: 316L for cleanability and corrosion resistance.

Customer notes: “Pressure drop fell by ≈7% after switching to LR 1.5D.” Another maintenance lead told me, “Galvanized SR elbows survived the winter salt fog—surprisingly well.”

Vendor snapshot (my take)

Vendor	Lead time	Certs	MOQ	Customization	Pricing
HBJY Pipeline (Elbows)	≈2–4 weeks	ISO 9001; ASME-compliant	Flexible	Radius/liner/marking	Competitive
Local Fabricator A	1–2 weeks	Shop QA only	Low	Limited	Mid
Global Brand B	4–8 weeks	Extensive	Medium	Wide	High

Customization that actually helps

Options include 2D–5D radii, heavier wall (SCH XXS), PTFE/rubber liners, color-coded coatings, stamped heat numbers, and special angles for skid modules. It sounds simple, but right bevel prep has saved many on-site weld hours.

Trends I’m seeing

- More duplex/super duplex for seawater.
- Digital MTRs with QR traceability.
- Automated NDE and tighter ovality controls. To be honest, the traceability bit is overdue.

Two quick case notes

Refinery turnaround: LR 90° alloy elbows (P11, Class 900) cut erosion at a catalytic cracker outlet; UT after 6 months showed wall loss ≤0.2 mm. Desalination: 316L 3D elbows with FBE coating kept head losses predictable; operators reported easier pigging. Small details, big wins.

Elbow Pipe Types from HBJY are produced in the Industrial District of North Circle, Mengcun, Cangzhou, Hebei, China—close to steel mills and ports, which frankly helps with cost and lead time.

If you’re mapping a tricky retrofit, send P&IDs and preferred radii—I guess a quick pressure/velocity snapshot plus corrosion allowance will get you a right-first-time elbow list.
