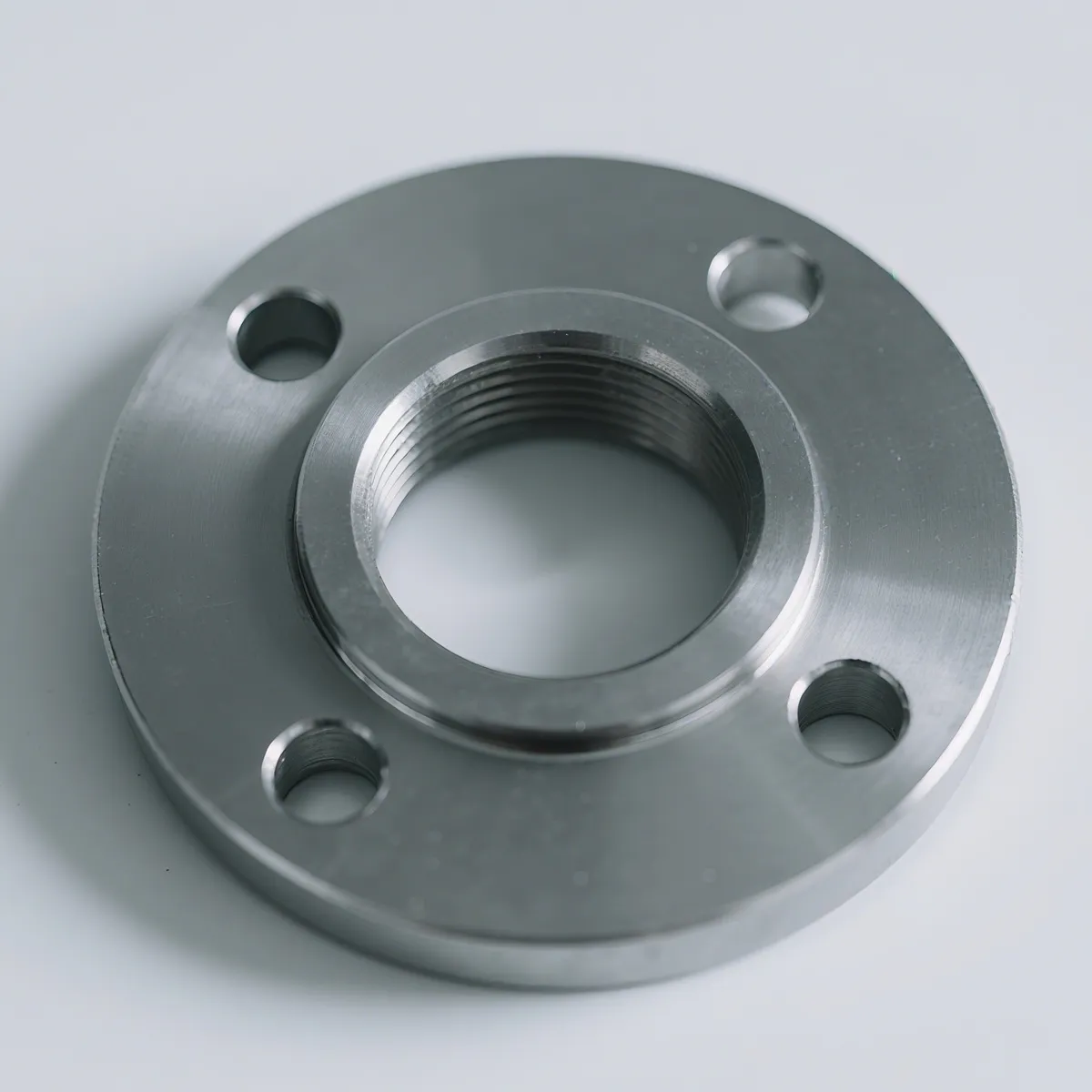

Introduction to Threaded Flanges in Industrial Applications

In the realm of industrial piping systems, a secure and leak-proof connection is paramount for operational safety and efficiency. The threaded flange stands as a critical component, offering a reliable, non-welded solution for connecting pipes, valves, and other equipment. Its design, featuring an internal thread, allows for direct attachment to pipes with external threads, making it particularly advantageous in scenarios where welding is impractical, hazardous, or costly. This section delves into the significance, key characteristics, and prevailing industry trends surrounding this essential piping component.

The demand for robust and adaptable piping solutions continues to drive innovation. Industry trends indicate a growing preference for components that facilitate quicker installation, minimize downtime, and ensure long-term integrity, especially in challenging environments. The inherent ease of installation and removal associated with the threaded flange aligns perfectly with these operational demands. Furthermore, material science advancements are leading to threaded flanges manufactured from exotic alloys that offer enhanced resistance to corrosion and extreme temperatures, expanding their utility across an even broader spectrum of applications. Compliance with international standards, such as ANSI/ASME B16.5 and B16.47, is non-negotiable, ensuring interchangeability and performance consistency globally.

Beyond conventional uses, the integration of smart technologies in pipeline monitoring systems is influencing component design. While not directly a smart component, the reliability of a threaded pipe flange contributes significantly to the overall integrity of systems that might incorporate sensors and data analytics. This foundational reliability is key to preventing failures that could disrupt data flow or compromise system safety. The market for threaded flanges is projected to grow steadily, driven by ongoing infrastructure development, particularly in oil and gas, chemical processing, and water treatment sectors, where their distinct advantages continue to be highly valued.

Detailed Manufacturing Process of Threaded Flanges

The production of a high-quality threaded flange involves a precise sequence of manufacturing steps, ensuring dimensional accuracy, material integrity, and adherence to stringent performance standards. The process typically begins with the selection of raw materials, followed by forming, machining, and rigorous testing.

1. Material Selection

The choice of material is crucial, dictated by the intended application's temperature, pressure, and corrosive environment. Common materials include Carbon Steel (e.g., A105, A350 LF2), Stainless Steel (e.g., A182 F304/304L, F316/316L), and Alloy Steel (e.g., A182 F5, F9, F11, F22). These materials are selected based on their mechanical properties, weldability (if applicable for some flange types, though not for threaded), and resistance to specific service conditions.

2. Forming Process

• Forging: Forged flanges, particularly those made from carbon or alloy steel, are produced by heating billets to a plastic state and shaping them under immense pressure using dies. This process refines the grain structure, enhancing strength, toughness, and ductility, making them suitable for high-pressure and high-temperature applications.
• Casting: Cast flanges are formed by pouring molten metal into a mold. While potentially more cost-effective for complex shapes, casting can introduce porosity and internal defects if not meticulously controlled. Quality cast flanges undergo extensive NDT (Non-Destructive Testing) to ensure structural integrity.

3. Machining (CNC)

After forming, the flange blanks undergo precision machining. Computer Numerical Control (CNC) machines are utilized to achieve tight tolerances for dimensions, facing, drilling bolt holes, and critically, cutting the internal pipe threads. The threading process requires meticulous calibration to ensure a precise taper and engagement with the mating pipe thread, typically NPT (National Pipe Taper) or BSPT (British Standard Pipe Taper).

4. Heat Treatment

Depending on the material and required mechanical properties, heat treatment processes such as normalizing, annealing, quenching, and tempering may be applied. These processes optimize the material's microstructure, enhancing hardness, strength, and corrosion resistance, and relieving internal stresses.

5. Surface Treatment

Surface treatments, such as anti-rust oil coating, galvanizing, or painting, are applied to protect the flange from corrosion during storage, transport, and initial installation. This is particularly important for carbon steel threaded flanges.

6. Quality Control and Testing

Each flange threaded type undergoes stringent quality control at various stages. This includes:

• Dimensional Inspection: Verification against ANSI/ASME B16.5, B16.47, DIN, JIS, EN, or other specified standards.
• Material Composition: Spectrographic analysis to confirm chemical composition.
• Mechanical Properties: Tensile strength, yield strength, hardness, and impact tests.
• Non-Destructive Testing (NDT): Ultrasonic testing (UT), Magnetic Particle Testing (MPT), Liquid Penetrant Testing (LPT) to detect internal and surface defects.
• Hydrostatic Testing: Although typically performed on assembled systems, the integrity of the flange itself is crucial for system-level pressure tests.

This comprehensive manufacturing and testing regimen ensures a service life often exceeding 20-30 years under proper operating conditions, contributing to energy saving by preventing leaks and maintaining system efficiency. These flanges find extensive use in target industries such as petrochemicals, metallurgy, power generation, and water supply & drainage, where their corrosion resistance (especially for stainless steel variants) and reliable connections are critical.

Technical Specifications and Parameters

Understanding the precise technical specifications of a threaded pipe flange is crucial for ensuring compatibility, performance, and safety within any industrial piping system. These parameters are governed by international standards, providing a framework for design, material, and testing.

Key Dimensional and Performance Parameters

• Nominal Pipe Size (NPS): Indicates the size of the pipe the flange is designed for.
• Pressure Class/Rating: Defines the maximum allowable working pressure at a specific temperature. Common classes include Class 150, 300, 600, 900, 1500, and 2500, adhering to ASME B16.5.
• Flange Face Type: Typically Raised Face (RF) or Flat Face (FF). RF is most common, creating a smaller gasket area for higher bolt load.
• Thread Type: Predominantly NPT (National Pipe Taper) or BSPT (British Standard Pipe Taper), ensuring a tight mechanical seal when properly assembled with pipe sealant.
• Material Grade: Specifies the metallic composition, impacting strength, corrosion resistance, and temperature limits.
• Bolting Pattern: Number and diameter of bolt holes, matching the corresponding pipe or equipment flange.

Typical Threaded Flange Specification Table (ASME B16.5)

These detailed specifications are vital for engineers and procurement specialists to select the correct threaded flange for their specific system requirements, ensuring operational integrity and compliance with regulatory frameworks.

Key Technical Advantages of Threaded Flanges

The distinct design of a threaded flange offers several compelling technical advantages that make it a preferred choice in specific industrial applications, particularly where ease of assembly and maintenance are prioritized over extreme service conditions.

1. Non-Welded Installation

One of the primary advantages is the elimination of welding. This is critical in environments where flammable materials are present, making hot work (welding) hazardous. It also simplifies installation in remote locations or where skilled welders are unavailable. The threaded connection allows for quick assembly and disassembly, significantly reducing labor costs and project timelines.

2. Ease of Assembly and Disassembly

The ability to screw the flange onto a pipe allows for effortless installation and removal. This is invaluable during maintenance, inspection, or system modifications, as components can be easily replaced or adjusted without cutting or re-welding. This translates into reduced downtime and increased operational flexibility.

3. Cost-Effectiveness for Low-Pressure, Non-Corrosive Services

For utility services such as water, air, or low-pressure steam, especially in non-corrosive environments, threaded flanges are often more economical than their welded counterparts. The reduced labor associated with installation and the elimination of welding consumables contribute to overall project savings.

4. Versatility in Material Options for Specific Demands

While threaded flanges are commonly made from carbon steel, they are also readily available in stainless steel (e.g., SS304, SS316) and various alloy steels. This material versatility allows engineers to select a flange threaded type that offers enhanced corrosion resistance for specific media or improved strength for moderate pressure and temperature applications. For instance, stainless steel threaded flanges are highly valued for their superior corrosion resistance in chemical processing and pharmaceutical industries.

5. Suitable for Smaller Pipe Sizes and Certain Wall Thicknesses

Threaded connections are particularly well-suited for smaller nominal pipe sizes where welding might be challenging due to space constraints or the pipe's wall thickness. They are also often used with Schedule 80 and heavier wall pipe, as the strength of the pipe itself provides substantial rigidity for the threaded connection.

Application Scenarios and Target Industries

The adaptability and specific advantages of the threaded flange make it indispensable across a range of industries and application scenarios. Its primary utility lies in systems requiring quick assembly, maintenance, or where welding presents operational challenges.

Target Industries

• Petrochemical and Oil & Gas: Used in utility lines, non-critical process lines, and maintenance bypasses where quick connection/disconnection is beneficial and pressures/temperatures are moderate. They are not typically used for highly volatile or high-pressure applications where weld integrity is paramount.
• Water Supply & Drainage: Widely adopted in municipal and industrial water treatment plants, pumping stations, and distribution networks. Their corrosion resistance (when stainless steel) and ease of installation make them ideal for water management systems.
• Chemical Processing: For non-hazardous chemical lines or utility services within chemical plants where aggressive media require stainless steel construction, and welding might introduce contamination or be prohibited due to safety protocols.
• Power Generation: Found in auxiliary systems, cooling water lines, and instrument lines within power plants where moderate conditions prevail.
• Metallurgy: In cooling systems, lubrication lines, and utility services in steel mills and other metallurgical facilities.
• Shipbuilding: For various piping systems aboard vessels, including freshwater, drainage, and low-pressure steam lines, valuing their ease of assembly in confined spaces.

Typical Application Scenarios

• Utility Lines: Air, nitrogen, inert gases, and non-potable water systems.
• Instrument Connections: For attaching pressure gauges, transmitters, or other instrumentation to pipelines.
• Temporary Piping Systems: Where systems need to be frequently assembled and disassembled.
• Fire Protection Systems: In sprinkler systems and fire hydrants where quick and reliable connections are essential.
• Small Bore Piping: Often preferred for pipes under NPS 2 due to installation simplicity.
• Maintenance and Repair: Facilitating rapid component replacement or system modifications.

The application of a threaded flange typically adheres to pressure-temperature ratings specified by ASME B16.5, generally suited for Class 150 to Class 600 systems, particularly for sizes up to NPS 4. Beyond these parameters, alternative flange types like weld-neck or slip-on flanges are usually recommended for enhanced integrity.

Vendor Comparison and Selection Considerations

Selecting the right supplier for threaded flange components is as crucial as the product specifications themselves. A thorough vendor comparison ensures not only product quality and compliance but also reliable service and support.

Key Factors for Vendor Evaluation

• Certifications and Standards Compliance: Verify adherence to international standards such as ISO 9001 for quality management, and product-specific standards like ASME B16.5, EN 1092-1, DIN, JIS. Reputable vendors will readily provide material test reports (MTRs) and conformity certificates.
• Material Traceability: Ensure complete traceability of raw materials from mill to finished product. This is vital for quality control and problem diagnosis.
• Manufacturing Capabilities: Assess whether the vendor utilizes advanced manufacturing techniques like CNC machining for precise threading and dimensional accuracy.
• Quality Control Processes: Inquire about their in-house testing facilities (NDT, mechanical testing) and their commitment to rigorous quality checks at every production stage.
• Experience and Reputation: Look for vendors with a proven track record, years of service in the industry, and positive customer feedback. Partner clients and case studies can provide insights into their capabilities.
• Customization Capabilities: If specific dimensions, materials, or pressure classes are required beyond standard offerings, evaluate their capacity for customized solutions.
• Lead Time and Logistics: Assess their ability to meet delivery schedules and their logistical support for international shipments.
• After-Sales Support and Warranty: Understand their warranty terms, return policy, and technical support availability.

Vendor Comparison Table (Illustrative)

This structured approach helps B2B decision-makers make informed choices, ensuring long-term reliability and partnership value for their threaded pipe flange procurement needs.

Customized Solutions for Threaded Flanges

While standard threaded flange specifications cover a vast array of industrial needs, specialized projects often demand tailor-made solutions. Leading manufacturers understand this necessity and offer extensive customization options to meet unique operational requirements, material constraints, or geometric challenges.

Areas of Customization

• Exotic Materials: Beyond standard carbon and stainless steels, customized flanges can be manufactured from nickel alloys (e.g., Inconel, Monel), Hastelloy, Duplex/Super Duplex Stainless Steel, or Titanium for extreme corrosive environments, high-temperature service, or specific strength-to-weight ratios.
• Non-Standard Dimensions: Projects may require flanges with non-standard diameters, thicknesses, or bolt hole patterns to interface with legacy equipment or unique vessel connections.
• Specialized Coatings: For enhanced corrosion protection or wear resistance, custom coatings like PTFE lining, internal epoxy coatings, or specialized galvanization techniques can be applied.
• Modified Thread Types: While NPT and BSPT are common, specific applications might call for alternative thread forms or higher precision threads for particular instrumentation.
• Optimized Pressure and Temperature Ratings: Designing flanges for specific pressure-temperature envelopes that fall outside standard class ratings, often requiring detailed FEA (Finite Element Analysis) to validate the design.
• Integral Features: Integration of features like instrumentation taps, lifting lugs, or specific face finishes (e.g., phonographic serrations for enhanced gasket sealing) directly into the flange design.

Engaging with a manufacturer capable of advanced engineering and precision machining is paramount for customized flange threaded type solutions. This ensures that the bespoke product not only fits perfectly but also performs reliably under its intended operational parameters, often exceeding the lifespan of off-the-shelf components.

Real-World Application Case Studies

The practical deployment of threaded flange components across diverse industrial landscapes provides compelling evidence of their reliability and strategic utility. These case studies highlight successful implementations and demonstrate how specific advantages translate into tangible benefits.

Case Study 1: Municipal Water Treatment Plant Upgrade

Client: Large Metropolitan Water Authority
Challenge: An aging water treatment plant required a rapid upgrade of its low-pressure utility lines (NPS 4 and below) without extensive downtime or the use of hot work due to sensitive equipment nearby. The existing infrastructure used traditional welded connections, which would have prolonged the maintenance schedule significantly.

Solution: The project opted for Class 150 Stainless Steel threaded flange connections for sections of the upgraded piping. The ease of assembly and disassembly minimized installation time by approximately 40% compared to welding. The inherent corrosion resistance of the SS304 material ensured long-term integrity against treated water. Customer feedback indicated "exceptional ease of installation and significant reduction in project hours, allowing the plant to resume full operation ahead of schedule."

Case Study 2: Offshore Oil Platform Instrument Line Installation

Client: Leading Offshore Energy Producer
Challenge: Installing new instrumentation lines (NPS 1/2 to NPS 2) on an active offshore oil platform. Welding was highly restricted due to fire hazard protocols and the confined, complex nature of the platform's structure.

Solution: Duplex Stainless Steel threaded flanges (Class 300) were selected for their superior corrosion resistance in marine environments and their non-welded installation method. This allowed technicians to quickly and safely connect instrument lines to existing piping without requiring extensive hot work permits or specialized welding teams. The robust nature of the threaded pipe flange ensured reliable connections for critical sensor data transmission. The client praised the "enhanced safety profile and expedited installation process in a challenging operational environment."

Case Study 3: Chemical Plant Process Utility Integration

Client: Specialty Chemical Manufacturer
Challenge: Integrating a new small-batch reactor into an existing chemical process line. The project required frequent modifications and quick connection/disconnection capabilities for various solvent feeds and byproduct removal, often handled at moderate pressures and temperatures.

Solution: The engineering team specified Class 150 Hastelloy C276 flange threaded type for the highly corrosive solvent lines and SS316L for less aggressive utility lines. The threaded design allowed the plant engineers to reconfigure connections rapidly between production runs, offering unprecedented flexibility and minimizing downtime. The high-performance material ensured excellent corrosion resistance, extending the service life of components in a demanding chemical environment. This solution reportedly "revolutionized the plant's agility in adapting to diverse product demands, leading to a 15% increase in production flexibility."

Frequently Asked Questions (FAQ) about Threaded Flanges

Q1: What are the primary advantages of using a threaded flange over a welded flange?

A1: The main advantages include ease of installation and disassembly, elimination of hot work (welding), which is safer in hazardous environments, and reduced labor costs. This makes threaded flanges ideal for temporary lines, quick modifications, or in areas where welding is impractical or prohibited.

Q2: In what pressure and temperature ranges are threaded flanges typically used?

A2: Threaded flanges are generally recommended for low to moderate pressure-temperature applications. According to ASME B16.5, they are typically rated for Class 150, 300, and sometimes 600. For higher pressures or temperatures, or for highly cyclic services, welded flange types (e.g., weld neck) are usually preferred due to their superior integrity against leakage and stress.

Q3: What types of thread standards are common for threaded flanges?

A3: The most common thread standards are National Pipe Taper (NPT) as per ASME B1.20.1 in North America, and British Standard Pipe Taper (BSPT) as per ISO 7-1, widely used internationally. It's crucial to match the flange thread type with the pipe's external thread for a proper seal.

Q4: Are threaded flanges suitable for highly corrosive applications?

A4: Yes, if manufactured from appropriate materials. For highly corrosive environments, threaded pipe flange made from stainless steels (e.g., SS316L) or exotic alloys (e.g., Hastelloy, Monel) can be specified. The material selection is more critical than the connection type itself in these scenarios, though the threaded joint itself must be sealed properly to prevent crevice corrosion.

Q5: What is the typical service life of a high-quality threaded flange?

A5: With correct material selection, proper installation (including appropriate thread sealant), and operating within specified pressure-temperature limits, a high-quality flange threaded type can have a service life of 20 to 30 years or more. Regular inspections and maintenance contribute significantly to maximizing its longevity.

Order and Fulfillment Information

Lead Time and Fulfillment

Standard threaded flange orders typically have a lead time ranging from 2 to 4 weeks, depending on material, size, and quantity. Expedited options are available for urgent requirements. Custom or highly specialized orders may require longer lead times, usually 6-8 weeks, to accommodate material sourcing and specific manufacturing processes. We maintain a substantial inventory of common sizes and materials to ensure prompt delivery for routine demands.

Warranty Commitments

All our threaded flanges come with a comprehensive 24-month warranty against manufacturing defects and material failures, effective from the date of shipment. This warranty underscores our commitment to quality and customer satisfaction. Terms and conditions apply, available upon request.

Customer Support and After-Sales Service

Our dedicated customer support team is available to assist with technical queries, order tracking, and any after-sales concerns. We offer expert guidance on product selection, installation best practices, and troubleshooting. For technical assistance, please contact our engineering department during business hours. Our commitment extends beyond delivery, ensuring the reliable performance of our products throughout their operational life.

Conclusion

The threaded flange remains a pivotal component in industrial piping, valued for its installation efficiency, versatility across various materials, and robust performance in suitable applications. Its role in facilitating safer, quicker, and more cost-effective connections, especially where welding is impractical, underscores its enduring relevance in modern infrastructure development. As industries continue to evolve, the demand for reliable, compliant, and adaptable piping solutions will only increase, cementing the threaded flange's position as a cornerstone of industrial connectivity.

Citations

1. ASME Boiler and Pressure Vessel Code, Section VIII, Division 1 – Rules for Construction of Pressure Vessels. American Society of Mechanical Engineers.
2. ASME B16.5 – Pipe Flanges and Flanged Fittings NPS 1/2 Through NPS 24 Metric/Inch Standard. American Society of Mechanical Engineers.
3. ASME B1.20.1 – Pipe Threads, General Purpose (Inch). American Society of Mechanical Engineers.
4. ISO 7-1 – Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances and designation. International Organization for Standardization.
5. API 6A – Specification for Wellhead and Christmas Tree Equipment. American Petroleum Institute.
