The Right Flange for Your Application: A Complete Technical Guide
Not all flanges are created equal. The type you choose impacts pressure containment, maintenance frequency, installation cost, and even worker safety. Below is a breakdown of the 7 most common flange types used in global industrial systems—with exact applications, material compatibility, and standards.

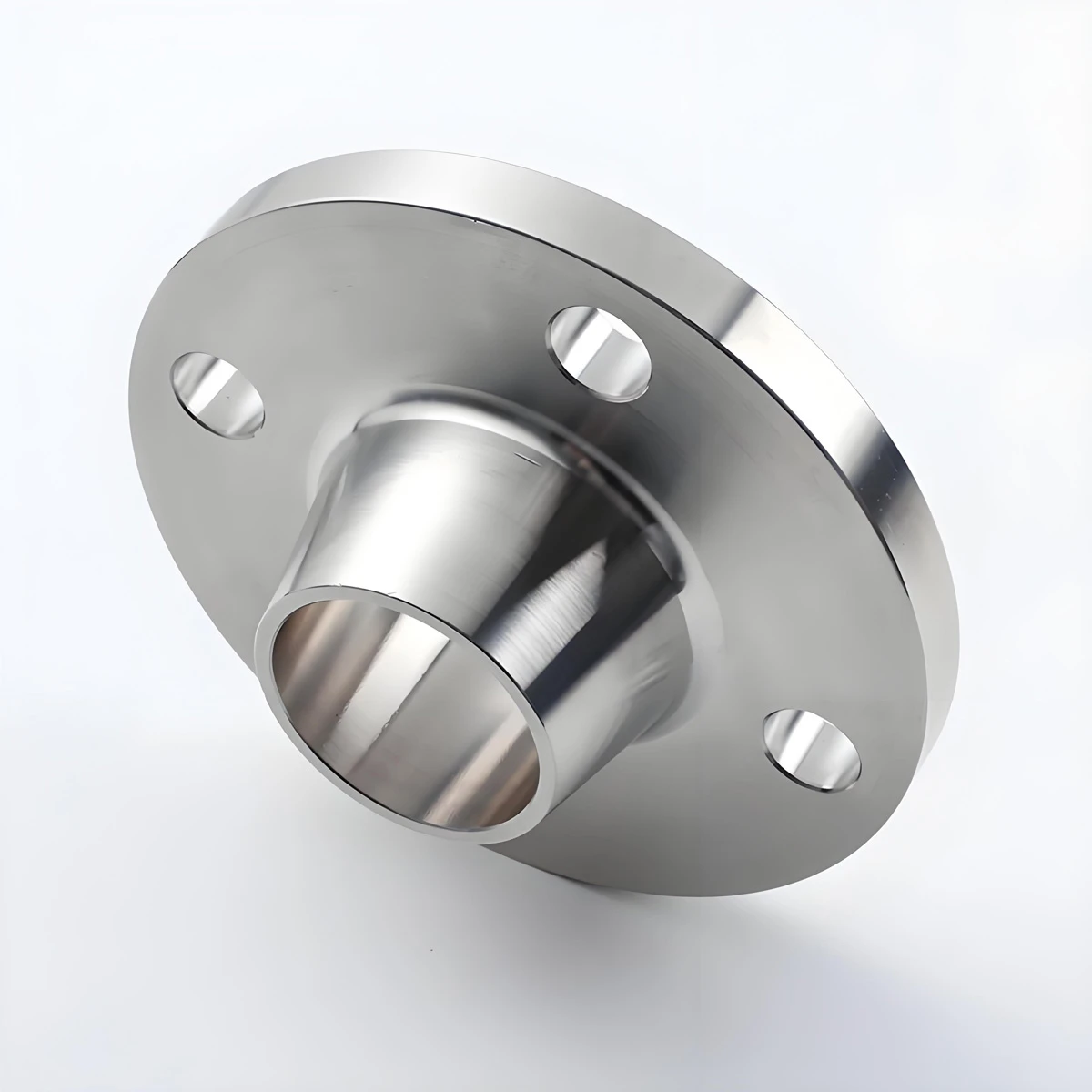

1. Weld Neck Flange (WN)
Best for: High-pressure, high-temperature, cyclic load applications (e.g., refineries, power plants)
- Standards: ANSI B16.5 (Class 150–2500), DIN 2633, JIS B2220
- Material Options: A105, F304L, F316L, Inconel 625, Duplex 2205
- Key Feature: Long tapered hub reduces stress concentration
- Why It Wins: 3x more fatigue-resistant than slip-on flanges under thermal cycling
2. Slip-On Flange (SO)
Best for: Low-pressure, non-critical lines (e.g., water cooling, compressed air)
- Standards: ANSI B16.5 (Class 150–300), DIN 2576
- Material Options: A105, 304, 316
- Key Feature: Slip over pipe, then fillet welded on both sides
- Cost Saving: 25% cheaper than weld neck, but requires double welding
3. Blind Flange (BF)
Best for: Sealing off pipe ends during maintenance or expansion
- Standards: ANSI B16.5, DIN 2566, GB/T 9119
- Material Options: Carbon steel, stainless steel, Monel 400
- Key Feature: Solid disc with bolt holes—no bore
- Use Case: Used in 87% of shutdowns at petrochemical plants to isolate reactor sections
4. Threaded Flange (TH)
Best for: Low-pressure, non-weldable pipelines (e.g., fire sprinklers, instrumentation)
- Standards: ANSI B16.11 (Class 2000–6000), DIN 2583
- Material Options: A105, F316, brass
- Key Feature: Internal NPT or BSPT threads
- Advantage: No welding required—ideal for hazardous zones (Class I, Div 1)
5. Socket Weld Flange (SW)
Best for: Small-bore, high-pressure lines (e.g., instrumentation, control valves)
- Standards: ANSI B16.11 (Class 3000–6000), JIS B2236
- Material Options: 304L, 316L, 1.4404
- Key Feature: Pipe inserted into socket, then fillet welded
- Limitation: Not recommended for severe cyclic service—prone to crevice corrosion
6. Lap Joint Flange (LJ)
Best for: Frequent disassembly (e.g., catalyst units, maintenance-heavy systems)
- Standards: ANSI B16.5, DIN 2641
- Material Options: Carbon steel body with stainless steel stub end
- Key Feature: Paired with a stub end; allows rotation during alignment
- Cost Benefit: Reduces need for expensive alloy flanges—stub end only needs corrosion resistance
7. Ring Type Joint (RTJ) Flange
Best for: Extreme pressure/temperature (e.g., offshore platforms, nuclear plants)
- Standards: ANSI B16.20, DIN 2692
- Material Options: 316L, Inconel 718, Monel K-500
- Key Feature: Metal-to-metal seal using R, RX, or BX rings
- Pressure Rating: Up to 20,000 psi (Class 4500+)
Flange Type Selection Comparison Table
| Flange Type | Max Pressure (psi) | Max Temp (°F) | Installation Time | Best For | Cost vs. Weld Neck |
|---|---|---|---|---|---|
| Weld Neck | 5,000+ (Class 2500) | 1,200 | 45–60 min | High-pressure pipelines | Baseline |
| Slip-On | 1,500 | 800 | 20–30 min | Low-pressure lines | -25% |
| Blind | 5,000+ (Class 2500) | 1,200 | 30 min | System isolation | +10% (solid disc) |
| Threaded | 3,000 | 500 | 10–15 min | Instrumentation, fire systems | -30% |
| Socket Weld | 6,000 | 1,000 | 25 min | Small bore, high pressure | +15% |
| Lap Joint | 3,000 | 800 | 40 min | Frequent maintenance | -20% (with alloy stub) |
| RTJ | 20,000 | 1,400 | 60 min | Offshore, nuclear | +50% |
